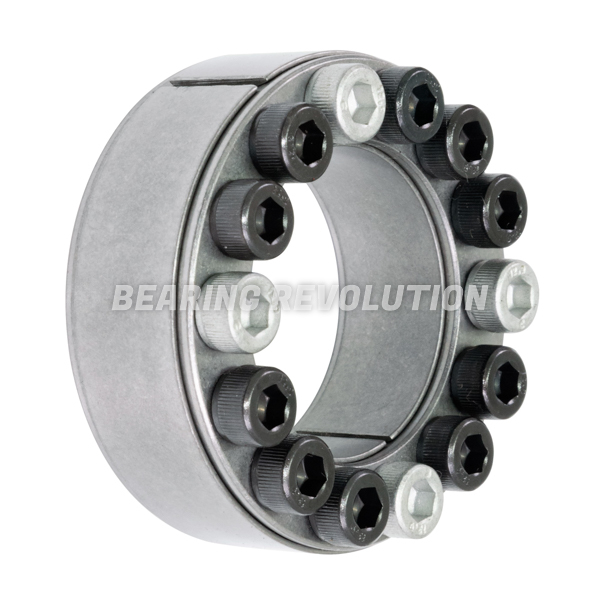

KLGG 055
LOCKING DEVICE TO SUIT A 55MM SHAFT
Not self-centering locking device for rapid mainternance and assembly, medium to high torque, non self locking.
- UnitsPer unit
- 1+£50.40 (£60.48 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLGG 055 | |
| Reference | KLGG 055 |
| Brand | BR |
| Inside Diameter | 55mm |
| Bolt | M8X22 |
| Number of Screws | 14 |
| Weight (KG) | 0.7 |

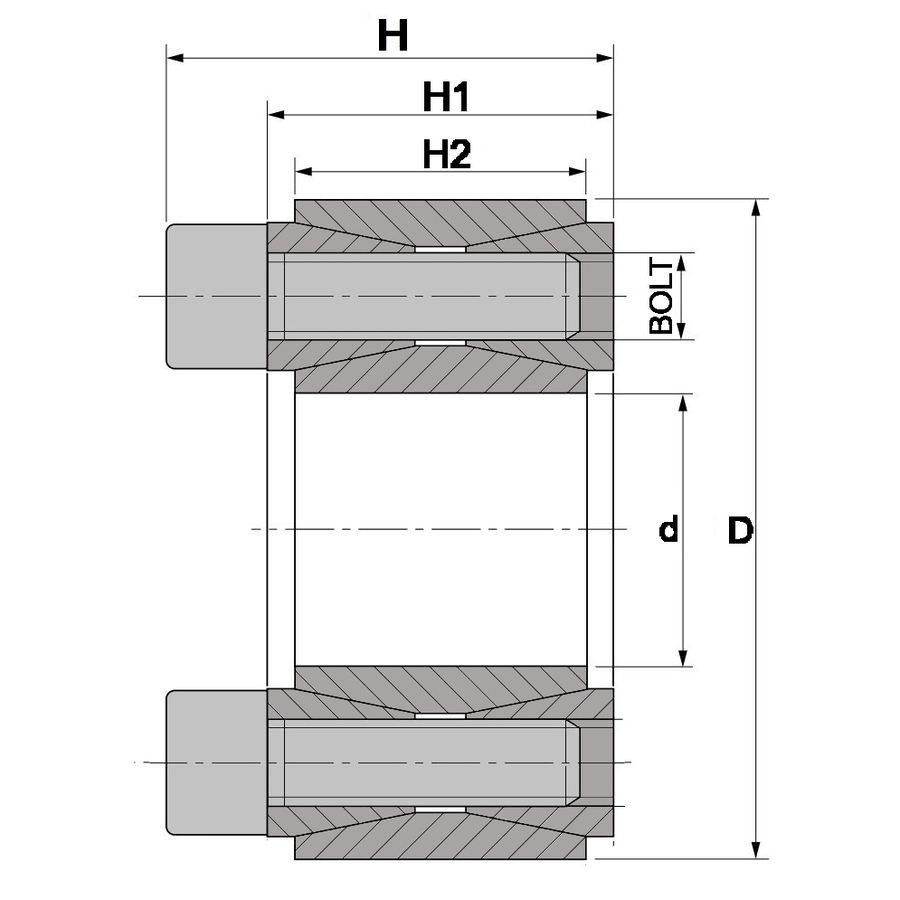

Schematic for KLGG 055 | |
| d | 55mm |
| D | 85mm |
| H | 32mm |
| H1 | 24mm |
| H2 | 20mm |
