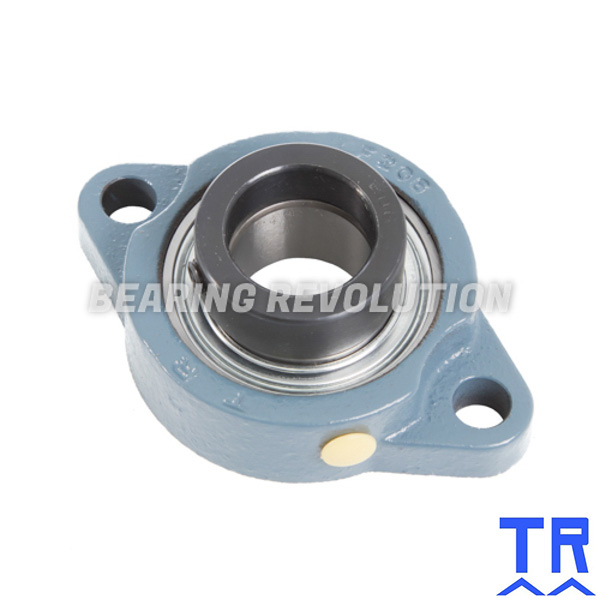

LFTC 1 EC ( SALF 205 16 ) - OVAL FLANGE UNIT WITH A 1 INCH BORE - TR BRAND
Light Duty Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£34.74 (£41.69 inc VAT)
- 5 - 9£33.01 (£39.61 inc VAT)
- 10 +£31.27 (£37.52 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 1 EC ( SALF 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand | |
| Reference | LFTC 1 EC |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M8 |
| Bolt1 | .5/16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.38 |
Schematic for LFTC 1 EC ( SALF 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand | |
| A | 20mm |
| A1 | 11mm |
| A2 | 11mm |
| E | 34.4mm |
| H | 95mm |
| J | 76mm |
| KG | 0.38 |
| L | 64mm |
| N | 10mm |
| S | 7.5mm |
