LFTC 16, 'PREMIUM' OVAL FLANGE UNIT WITH A 16MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£48.60 (£58.32 inc VAT)
- 5 +£46.17 (£55.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 16, 'Premium' Oval Flange Unit with a 16mm bore. | |
| Reference | LFTC 16 |
| Brand | Premium |
| Inside Diameter | 16mm |
| Weight (KG) | 0.3 |

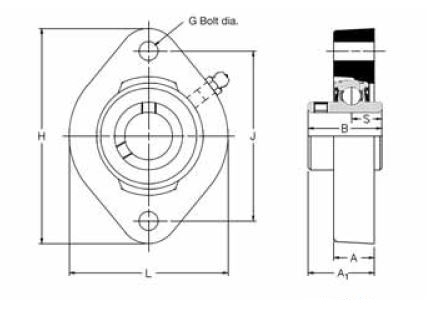

Schematic for LFTC 16, 'Premium' Oval Flange Unit with a 16mm bore. | |
| A | 15mm |
| A1 | 24.27mm |
| B | 27.38mm |
| G | 6mm |
| H | 81mm |
| J | 63.5mm |
| KG | 0.3 |
| L | 58.5mm |
| s | 11.58mm |
| s1 | 6.53mm |
