LFTC 1.7/16 A ( SBLF 207 23 ) - OVAL FLANGE UNIT WITH A 1.7/16 INCH BORE - TR BRAND

BR Stock No. B-LFTC 1.7/16 A | Brand: TR | Mfr. Part No. LFTC 1.7/16 A

Light Duty Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR Range.

Specifications for LFTC 1.7/16 A ( SBLF 207 23 ) - Oval Flange Unit with a 1.7/16 inch bore - TR Brand
Reference	LFTC 1.7/16 A
Brand	TR
Inside Diameter	1.7/16"
Bolt	M10
Bolt1	.3/8
Weight (KG)	0.78

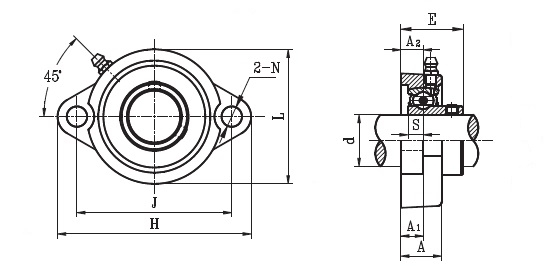

Schematic for LFTC 1.7/16 A ( SBLF 207 23 ) - Oval Flange Unit with a 1.7/16 inch bore - TR Brand
A	24mm
A1	13mm
A2	13mm
E	36.5mm
H	122mm
J	100mm
KG	0.78
L	89mm
N	12mm
S	8.5mm
