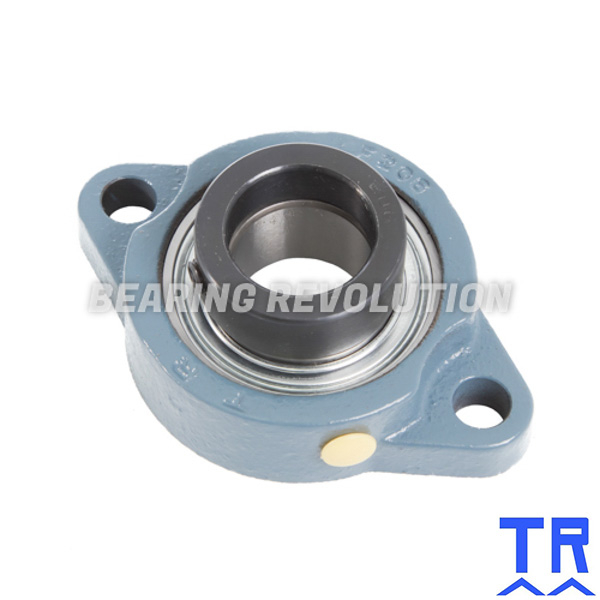

LFTC 20 EC ( SALF 204 ) - OVAL FLANGE UNIT WITH A 20MM BORE - TR BRAND
Light Duty Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£27.84 (£33.41 inc VAT)
- 5 - 9£26.44 (£31.73 inc VAT)
- 10 +£25.06 (£30.07 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 20 EC ( SALF 204 ) - Oval Flange Unit with a 20mm bore - TR Brand | |
| Reference | LFTC 20 EC |
| Brand | TR |
| Inside Diameter | 20mm |
| Bolt | M8 |
| Bolt1 | .5/16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.35 |

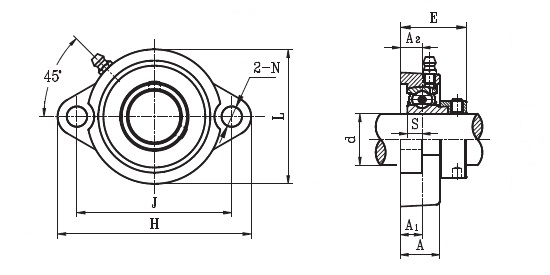

Schematic for LFTC 20 EC ( SALF 204 ) - Oval Flange Unit with a 20mm bore - TR Brand | |
| A | 20mm |
| A1 | 11mm |
| A2 | 11mm |
| E | 34.4mm |
| H | 90mm |
| J | 71.5mm |
| KG | 0.35 |
| L | 61mm |
| N | 10mm |
| S | 7.5mm |
