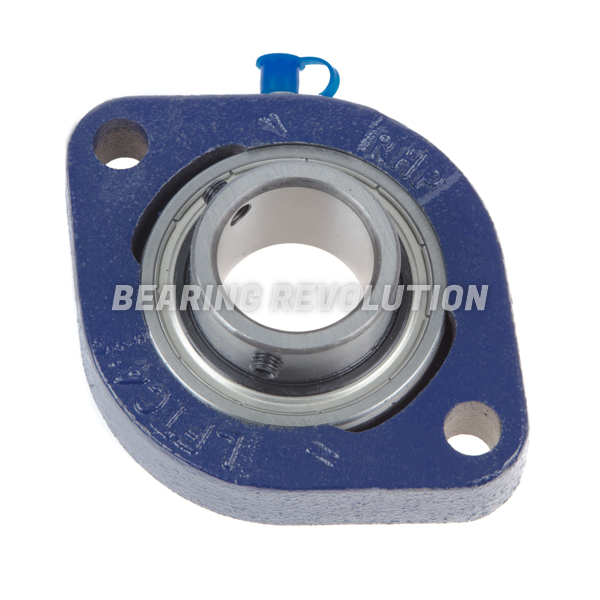

LFTC 20, 'PREMIUM' OVAL FLANGE UNIT WITH A 20MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£51.77 (£62.12 inc VAT)
- 5 +£49.18 (£59.02 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 20, 'Premium' Oval Flange Unit with a 20mm bore. | |
| Reference | LFTC 20 |
| Brand | Premium |
| Inside Diameter | 20mm |
| Weight (KG) | 0.4 |

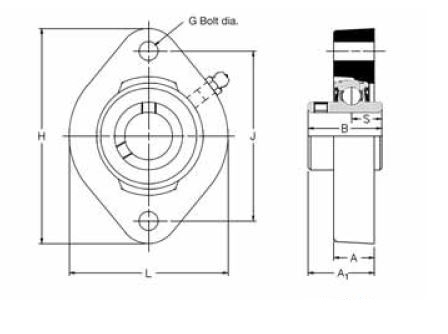

Schematic for LFTC 20, 'Premium' Oval Flange Unit with a 20mm bore. | |
| A | 17mm |
| A1 | 27.76mm |
| B | 31mm |
| G | 8mm |
| H | 90.5mm |
| J | 71.5mm |
| KG | 0.4 |
| L | 66.5mm |
| s | 12.73mm |
| s1 | 7.53mm |
| S2 | 17.13mm |
