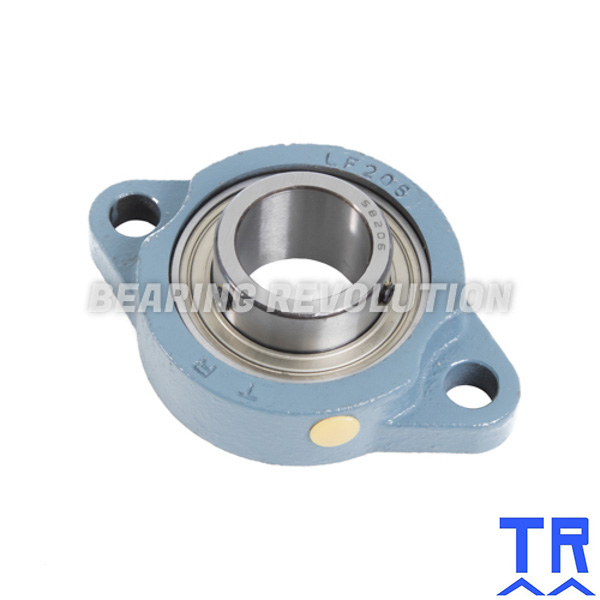

LFTC 35 A ( SBLF 207 ) - OVAL FLANGE UNIT WITH A 35MM BORE - TR BRAND
Light Duty Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£42.77 (£51.32 inc VAT)
- 5 - 9£40.64 (£48.77 inc VAT)
- 10 +£38.50 (£46.20 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 35 A ( SBLF 207 ) - Oval Flange Unit with a 35mm bore - TR Brand | |
| Reference | LFTC 35 A |
| Brand | TR |
| Inside Diameter | 35mm |
| Bolt | M10 |
| Bolt1 | .3/8 |
| Weight (KG) | 0.78 |

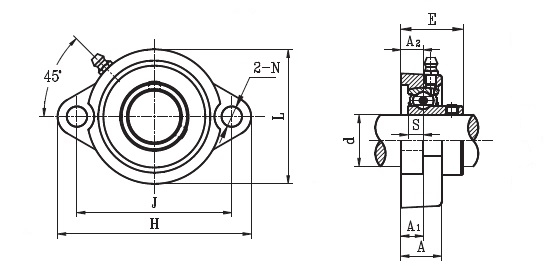

Schematic for LFTC 35 A ( SBLF 207 ) - Oval Flange Unit with a 35mm bore - TR Brand | |
| A | 24mm |
| A1 | 13mm |
| A2 | 13mm |
| E | 36.5mm |
| H | 122mm |
| J | 100mm |
| KG | 0.78 |
| L | 89mm |
| N | 12mm |
| S | 8.5mm |
