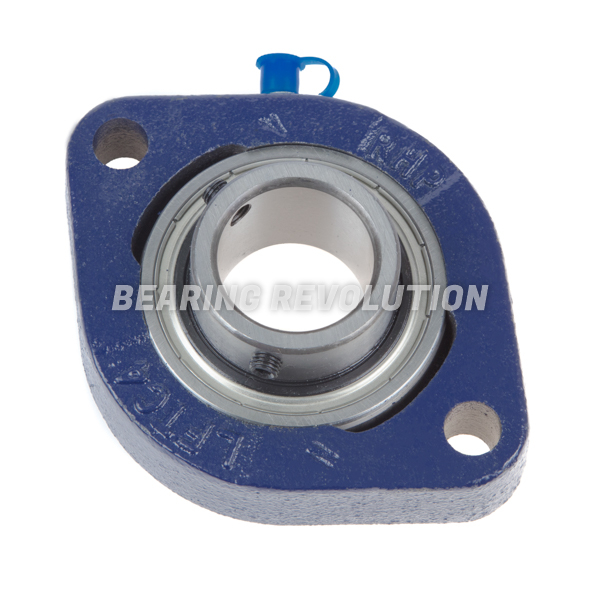

LFTC 35 A, 'PREMIUM' OVAL FLANGE UNIT WITH A 35MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£81.27 (£97.52 inc VAT)
- 5 +£77.21 (£92.65 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 35 A, 'Premium' Oval Flange Unit with a 35mm bore. | |
| Reference | LFTC 35 A |
| Brand | Premium |
| Inside Diameter | 35mm |
| Weight (KG) | 1.1 |

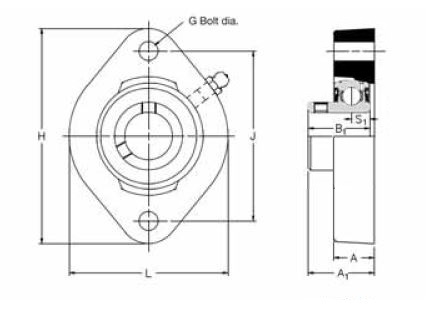

Schematic for LFTC 35 A, 'Premium' Oval Flange Unit with a 35mm bore. | |
| A | 22mm |
| A1 | 37.8mm |
| B | 42.9mm |
| B1 | 34.9mm |
| G | 10mm |
| H | 125mm |
| J | 100mm |
| KG | 1.1 |
| L | 93mm |
| s | 17.53mm |
| s1 | 9.03mm |
| S2 | 18.83mm |
