LPB 1 A, 'PREMIUM' PILLOW BLOCK UNIT WITH A 1 INCH BORE.
Pressed Steel and Zinc Plated Two Bolt Pillow Block Unit complete with flat back bearing insert from our Premium Range. Also known as SBPP 205 16.
Also known as SBPP 205 16
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£34.53 (£41.44 inc VAT)
- 5 +£32.81 (£39.37 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LPB 1 A, 'Premium' Pillow Block Unit with a 1 inch bore. | |
| Reference | LPB 1 A |
| Brand | Premium |
| Inside Diameter | 1" |
| Weight (KG) | 0.3 |

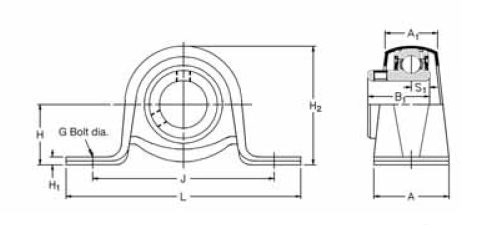

Schematic for LPB 1 A, 'Premium' Pillow Block Unit with a 1 inch bore. | |
| A | 31.7mm |
| A1 | 21.6mm |
| B1 | 27.35mm |
| G | 10mm |
| H | 28.6mm |
| H1 | 2.8mm |
| H2 | 55.8mm |
| J | 86mm |
| KG | 0.3 |
| L | 108mm |
| s1 | 7.56mm |
