LPB 15 A, 'PREMIUM' PILLOW BLOCK UNIT WITH A 15MM BORE.
Pressed Steel and Zinc Plated Two Bolt Pillow Block Unit complete with flat back bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.30 (£33.96 inc VAT)
- 5 +£26.88 (£32.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LPB 15 A, 'Premium' Pillow Block Unit with a 15mm bore. | |
| Reference | LPB 15 A |
| Brand | Premium |
| Inside Diameter | 15mm |
| Weight (KG) | 0.2 |

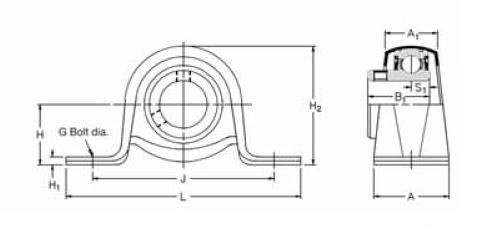

Schematic for LPB 15 A, 'Premium' Pillow Block Unit with a 15mm bore. | |
| A | 25.4mm |
| A1 | 15.9mm |
| B | 27.38mm |
| G | 8mm |
| H | 22.2mm |
| H1 | 2.4mm |
| H2 | 43.2mm |
| J | 68mm |
| KG | 0.2 |
| L | 85.7mm |
| s1 | 6.55mm |
