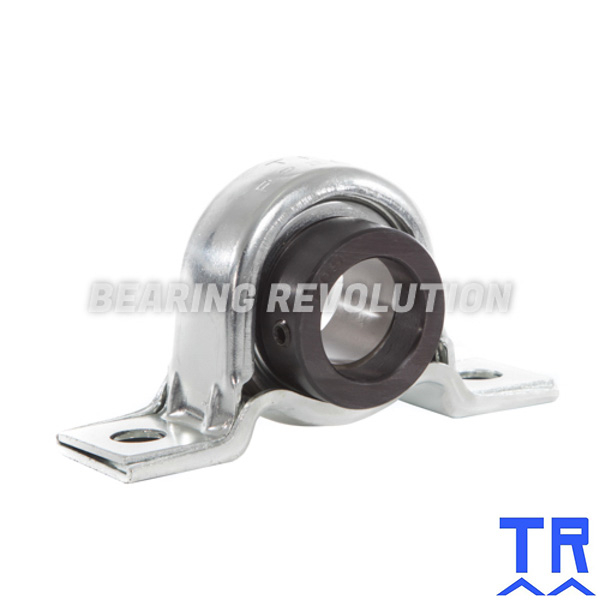

LPB 1.1/4 A ( SBPP 207 20 ) - PILLOW BLOCK UNIT WITH A 1.1/4 INCH BORE - TR BRAND
Pressed Steel Two Bolt Pillow Block Unit complete with flat back bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£22.63 (£27.16 inc VAT)
- 5 - 9£21.49 (£25.79 inc VAT)
- 10 +£20.37 (£24.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LPB 1.1/4 A ( SBPP 207 20 ) - Pillow Block Unit with a 1.1/4 inch bore - TR Brand | |
| Reference | LPB 1.1/4 A |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Bolt | M10 |
| Weight (KG) | 0.59 |

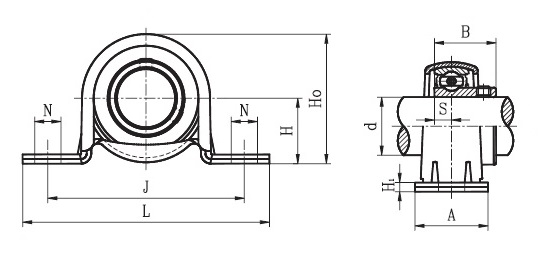

Schematic for LPB 1.1/4 A ( SBPP 207 20 ) - Pillow Block Unit with a 1.1/4 inch bore - TR Brand | |
| A | 42mm |
| B | 32mm |
| H | 39.7mm |
| H0 | 4mm |
| H1 | 77.7mm |
| J | 106mm |
| KG | 0.59 |
| L | 129mm |
| N | 11.5mm |
| S | 8.5mm |
