LPB 1.1/8 A, 'PREMIUM' PILLOW BLOCK UNIT WITH A 1.1/8 INCH BORE.

Name: LPB 1.1/8 A, &#039;Premium&#039; Pillow Block Unit with a 1.1/8 inch bore.
Brand: Premium
Price: 59.35 GBP
Availability: InStock

BR Stock No. P-LPB 1.1/8 A | Brand: Premium | Mfr. Part No. LPB 1.1/8 A

Pressed Steel and Zinc Plated Two Bolt Pillow Block Unit complete with flat back bearing insert from our Premium Range. Also known as SBPP 206 18.

Also known as SBPP 206 18

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£49.46 (£59.35 inc VAT)
5 +£46.97 (£56.36 inc VAT)
Bulk Order PricesENQUIRE

LPB 1.1/8 A, 'Premium' Pillow Block Unit with a 1.1/8 inch bore. Schematic

Specifications for LPB 1.1/8 A, 'Premium' Pillow Block Unit with a 1.1/8 inch bore.
Reference	LPB 1.1/8 A
Brand	Premium
Inside Diameter	1.1/8"
Weight (KG)	0.5

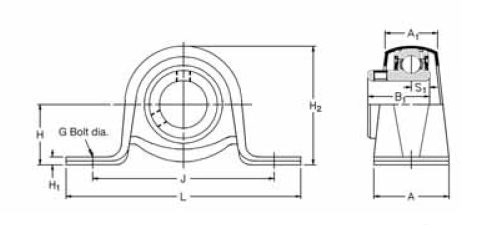

Schematic for LPB 1.1/8 A, 'Premium' Pillow Block Unit with a 1.1/8 inch bore.
A	37.5mm
A1	25.5mm
B1	31.21mm
G	10mm
H	33.3mm
H1	3.6mm
H2	65.7mm
J	95mm
KG	0.5
L	117.5mm
s1	9.04mm
