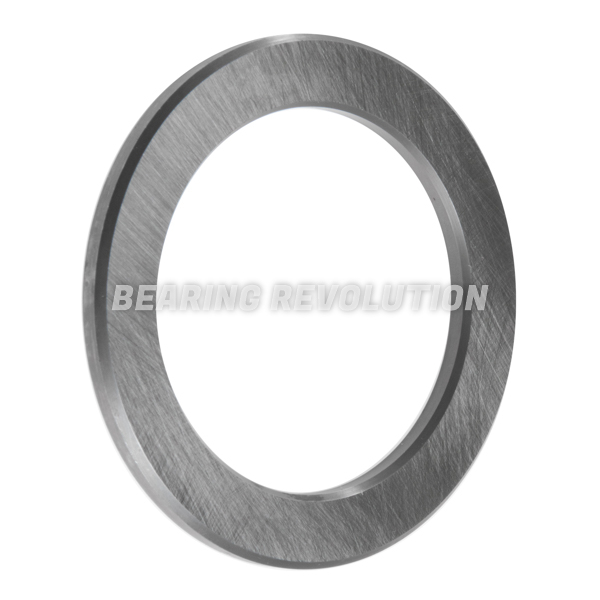

LS 2035, SHAFT OR HOUSING LOCATING WASHER WITH A 20MM BORE - PREMIUM RANGE
Shaft / Housing Locating Washer, ground raceway suitable for AXK and K 811 needle roller and cage assemblies, from our Premium range. 20mm ID, 35mm OD, 2.75mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£5.11 (£6.13 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LS 2035, Shaft or Housing Locating Washer with a 20mm bore - Premium Range | |
| Reference | LS 2035 |
| Brand | Premium |
| Inside Diameter | 20mm |
| Outside Diameter | 35mm |
| Width | 2.75mm |
| Weight (KG) | 0.013 |

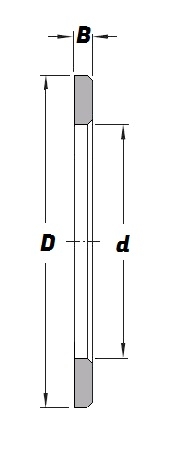

Schematic for LS 2035, Shaft or Housing Locating Washer with a 20mm bore - Premium Range | |
| B | 2.75mm |
| d | 20mm |
| D | 35mm |
