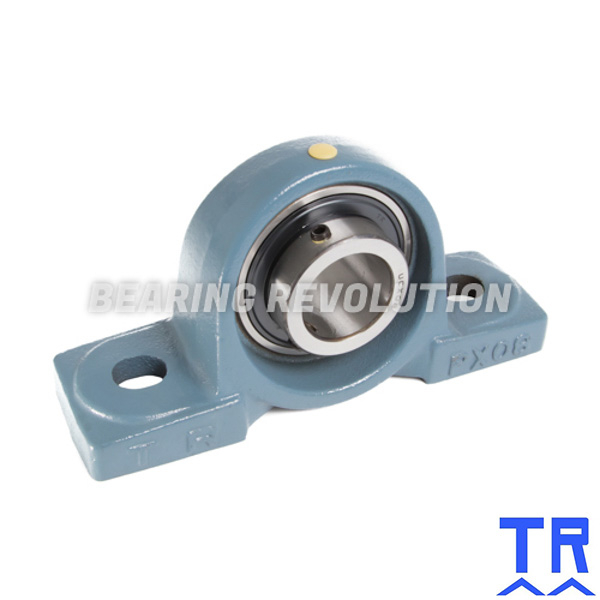

MP 3.1/2 ( UCPX 18 56 ) - PILLOW BLOCK HOUSING UNIT WITH A 3.1/2 INCH BORE - TR BRAND
Heavy Duty Cast Iron Pillow Block Housing Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£417.78 (£501.34 inc VAT)
- 5 - 9£396.88 (£476.26 inc VAT)
- 10 +£376.01 (£451.21 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MP 3.1/2 ( UCPX 18 56 ) - Pillow Block Housing Unit with a 3.1/2 inch bore - TR Brand | |
| Reference | MP 3.1/2 |
| Brand | TR |
| Inside Diameter | 3.1/2" |
| Bolt | M22 |
| Weight (KG) | 18.2 |

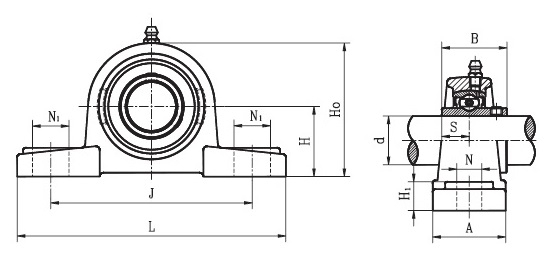

Schematic for MP 3.1/2 ( UCPX 18 56 ) - Pillow Block Housing Unit with a 3.1/2 inch bore - TR Brand | |
| A | 106mm |
| B | 104mm |
| H | 101.6mm |
| H0 | 206mm |
| H1 | 40mm |
| J | 283mm |
| KG | 18.2 |
| L | 381mm |
| N | 27mm |
| N1 | 30mm |
| S | 42.9mm |
