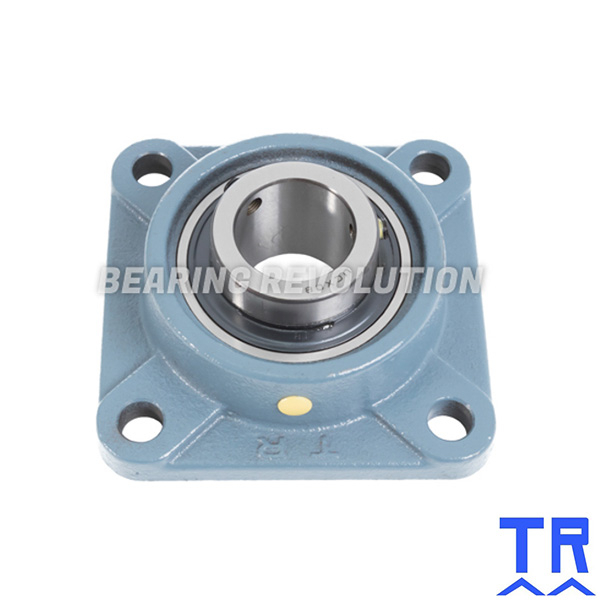

MSF 100 ( UCFX 20 ) - SQUARE FLANGED UNIT WITH A 100MM BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£574.14 (£688.97 inc VAT)
- 5 - 9£545.44 (£654.53 inc VAT)
- 10 +£516.72 (£620.06 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 100 ( UCFX 20 ) - Square Flanged Unit with a 100mm bore - TR Brand | |
| Reference | MSF 100 |
| Brand | TR |
| Inside Diameter | 100mm |
| Bolt | M27 |
| Weight (KG) | 20.8 |

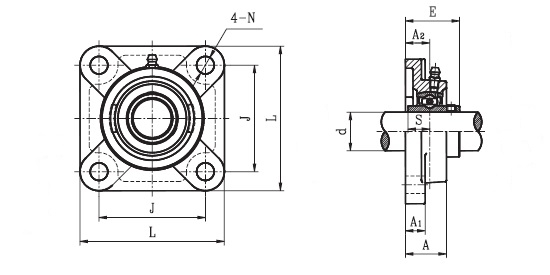

Schematic for MSF 100 ( UCFX 20 ) - Square Flanged Unit with a 100mm bore - TR Brand | |
| A | 97mm |
| A1 | 31mm |
| A2 | 59mm |
| E | 127.3mm |
| J | 211mm |
| KG | 20.8 |
| L | 268mm |
| N | 31mm |
| S | 49.2mm |
