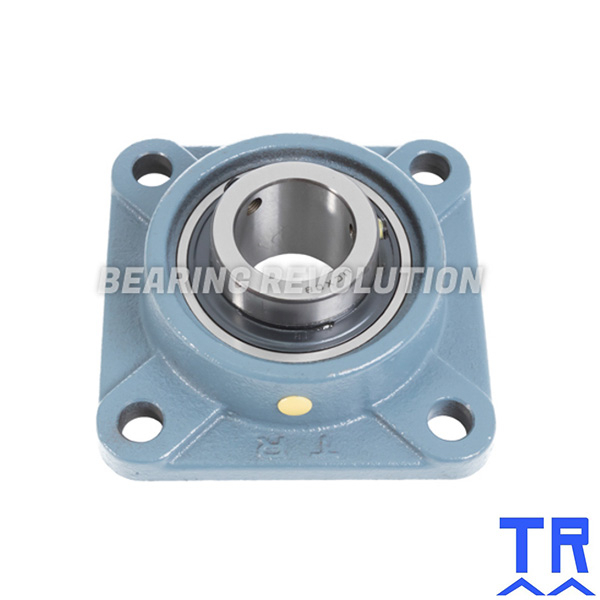

MSF 1.1/8 ( UCFX 06 18 ) - SQUARE FLANGED UNIT WITH A 1.1/8 INCH BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£67.06 (£80.47 inc VAT)
- 5 - 9£63.70 (£76.44 inc VAT)
- 10 +£60.36 (£72.43 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 1.1/8 ( UCFX 06 18 ) - Square Flanged Unit with a 1.1/8 inch bore - TR Brand | |
| Reference | MSF 1.1/8 |
| Brand | TR |
| Inside Diameter | 1.1/8" |
| Bolt | M12 |
| Weight (KG) | 1.48 |

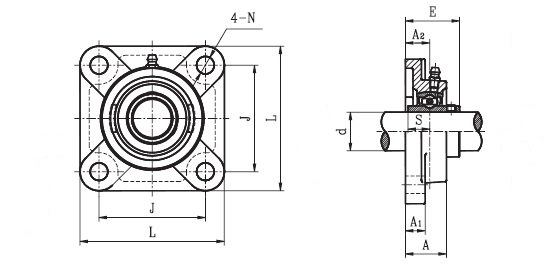

Schematic for MSF 1.1/8 ( UCFX 06 18 ) - Square Flanged Unit with a 1.1/8 inch bore - TR Brand | |
| A | 34mm |
| A1 | 14mm |
| A2 | 19mm |
| E | 44.4mm |
| J | 92mm |
| KG | 1.48 |
| L | 117mm |
| N | 13mm |
| S | 17.5mm |
