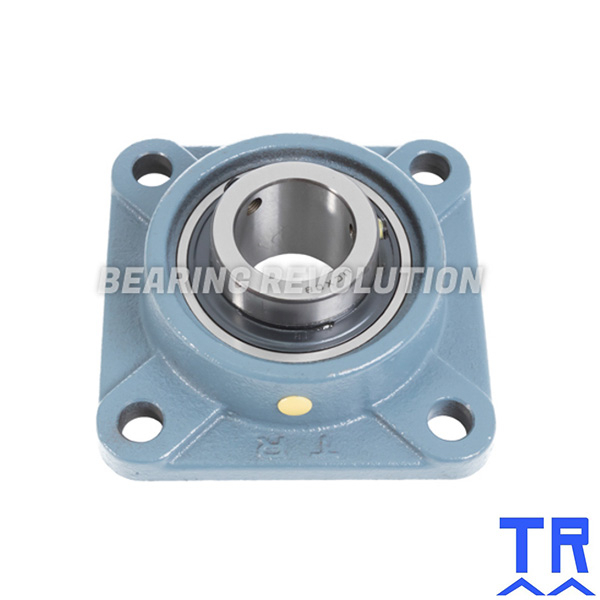

MSF 25 ( UCFX 05 ) - SQUARE FLANGED UNIT WITH A 25MM BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£42.37 (£50.84 inc VAT)
- 5 - 9£40.25 (£48.30 inc VAT)
- 10 +£38.13 (£45.76 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 25 ( UCFX 05 ) - Square Flanged Unit with a 25mm bore - TR Brand | |
| Reference | MSF 25 |
| Brand | TR |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Weight (KG) | 1.13 |

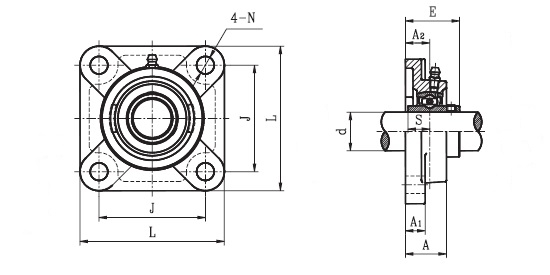

Schematic for MSF 25 ( UCFX 05 ) - Square Flanged Unit with a 25mm bore - TR Brand | |
| A | 30mm |
| A1 | 13mm |
| A2 | 18mm |
| E | 40.2mm |
| J | 82.5mm |
| KG | 1.13 |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
