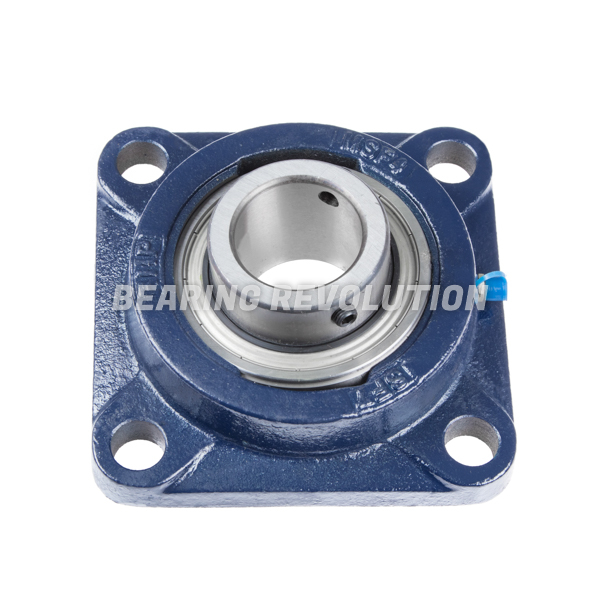

MSF 25, 'PREMIUM' SQUARE FLANGED UNIT WITH A 25MM BORE.
Heavy Duty Cast Iron Four Bolt Flanged Unit complete with full width bearing insert from our Premium Range. Also known as UCFX 05.
Also known as UCFX 05
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£80.48 (£96.58 inc VAT)
- 5 +£76.46 (£91.75 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 25, 'Premium' Square Flanged Unit with a 25mm bore. | |
| Reference | MSF 25 |
| Brand | Premium |
| Inside Diameter | 25mm |
| Weight (KG) | 1.3 |
Schematic for MSF 25, 'Premium' Square Flanged Unit with a 25mm bore. | |
| A | 29.8mm |
| G | 10mm |
| J | 82.5mm |
| KG | 1.3 |
| L | 108mm |
