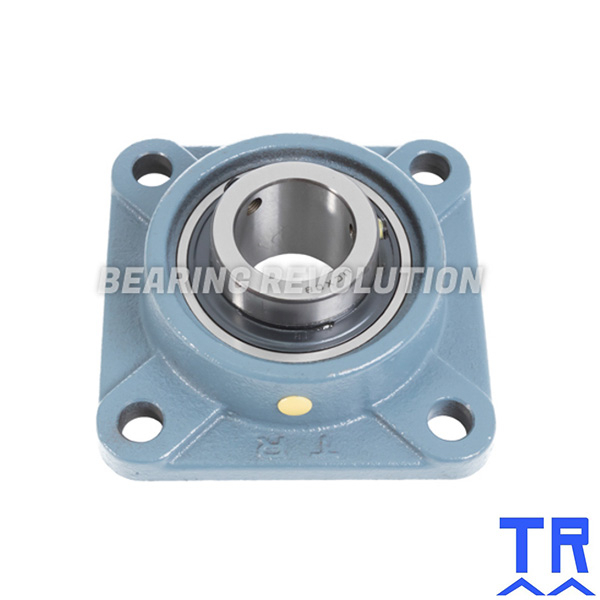

MSF 2.1/2 ( UCFX 13 40 ) - SQUARE FLANGED UNIT WITH A 2.1/2 INCH BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£162.51 (£195.01 inc VAT)
- 5 - 9£154.39 (£185.27 inc VAT)
- 10 +£146.25 (£175.50 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 2.1/2 ( UCFX 13 40 ) - Square Flanged Unit with a 2.1/2 inch bore - TR Brand | |
| Reference | MSF 2.1/2 |
| Brand | TR |
| Inside Diameter | 2.1/2" |
| Bolt | M16 |
| Weight (KG) | 5.76 |

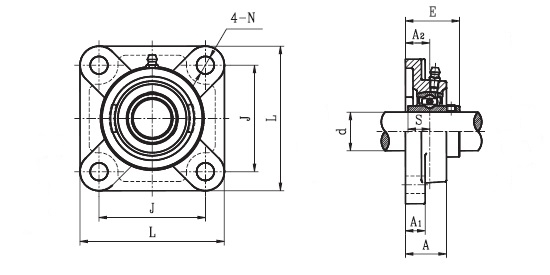

Schematic for MSF 2.1/2 ( UCFX 13 40 ) - Square Flanged Unit with a 2.1/2 inch bore - TR Brand | |
| A | 59mm |
| A1 | 21mm |
| A2 | 34mm |
| E | 78.4mm |
| J | 149mm |
| KG | 5.76 |
| L | 187mm |
| N | 17mm |
| S | 30.2mm |
