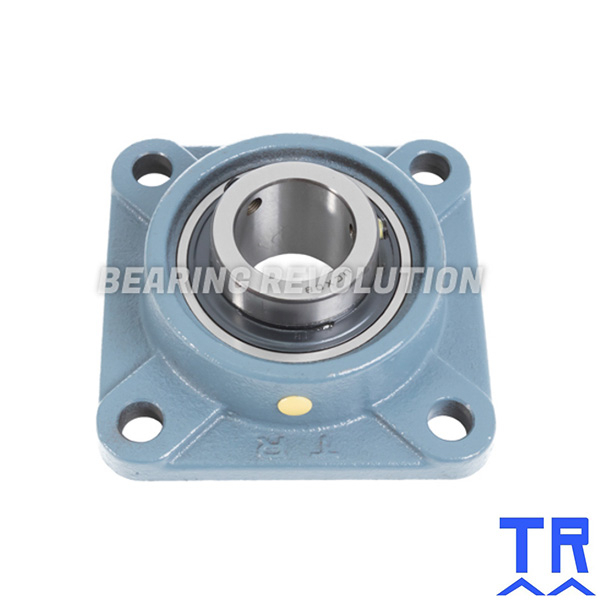

MSF 85 ( UCFX 17 ) - SQUARE FLANGED UNIT WITH A 85MM BORE - TR BRAND

BR Stock No. B-MSF 85 | Brand: TR | Mfr. Part No. MSF 85

Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.

Specifications for MSF 85 ( UCFX 17 ) - Square Flanged Unit with a 85mm bore - TR Brand
Reference	MSF 85
Brand	TR
Inside Diameter	85mm
Bolt	M18
Weight (KG)	10.7

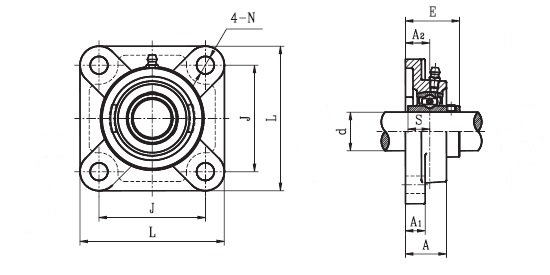

Schematic for MSF 85 ( UCFX 17 ) - Square Flanged Unit with a 85mm bore - TR Brand
A	70mm
A1	24mm
A2	40mm
E	96.3mm
J	171mm
KG	10.7
L	214mm
N	20mm
S	39.7mm
