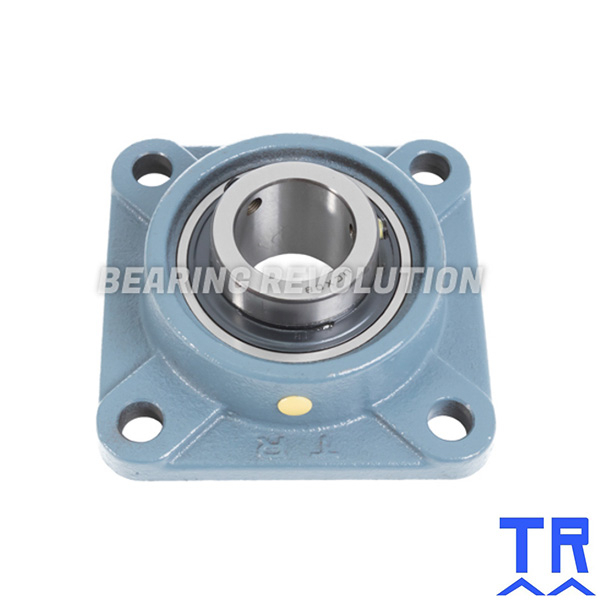

MSF 90 ( UCFX 18 ) - SQUARE FLANGED UNIT WITH A 90MM BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£382.81 (£459.37 inc VAT)
- 5 - 9£363.67 (£436.40 inc VAT)
- 10 +£344.54 (£413.45 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 90 ( UCFX 18 ) - Square Flanged Unit with a 90mm bore - TR Brand | |
| Reference | MSF 90 |
| Brand | TR |
| Inside Diameter | 90mm |
| Bolt | M20 |
| Weight (KG) | 11.7 |

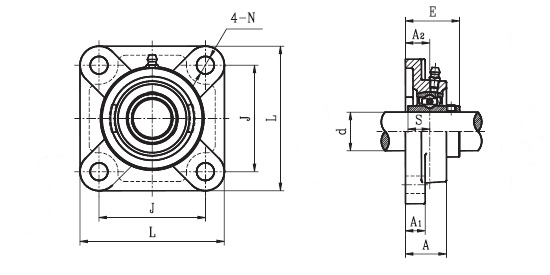

Schematic for MSF 90 ( UCFX 18 ) - Square Flanged Unit with a 90mm bore - TR Brand | |
| A | 76mm |
| A1 | 24mm |
| A2 | 45mm |
| E | 106.1mm |
| J | 171mm |
| KG | 11.7 |
| L | 214mm |
| N | 23mm |
| S | 42.9mm |
