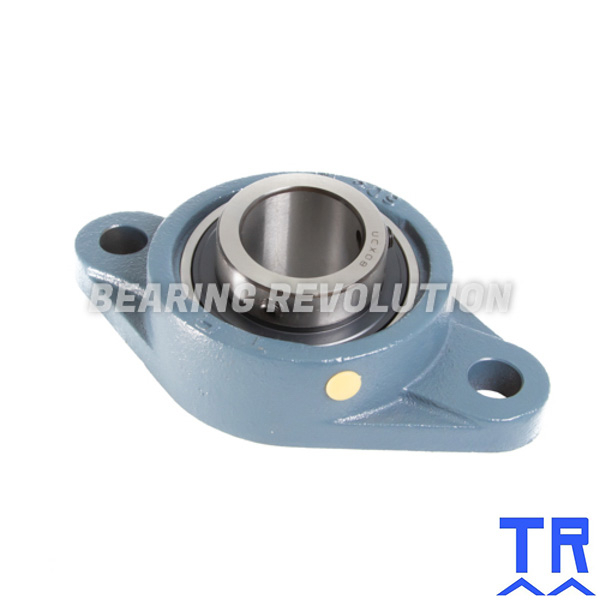

MSFT 1.1/2 ( UCFLX 08 24 ) - OVAL FLANGE UNIT WITH A 1.1/2 INCH BORE - TR BRAND
Heavy Duty Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£84.12 (£100.94 inc VAT)
- 5 - 9£79.92 (£95.90 inc VAT)
- 10 +£75.71 (£90.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSFT 1.1/2 ( UCFLX 08 24 ) - Oval Flange Unit with a 1.1/2 inch bore - TR Brand | |
| Reference | MSFT 1.1/2 |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Bolt | M14 |
| Weight (KG) | 2.03 |

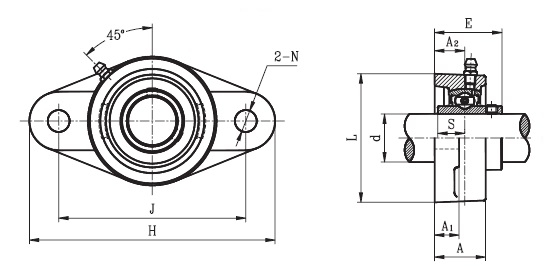

Schematic for MSFT 1.1/2 ( UCFLX 08 24 ) - Oval Flange Unit with a 1.1/2 inch bore - TR Brand | |
| A | 40mm |
| A1 | 14mm |
| A2 | 22mm |
| E | 52.2mm |
| H | 179mm |
| J | 148mm |
| KG | 2.03 |
| L | 111mm |
| N | 16mm |
| S | 19mm |
