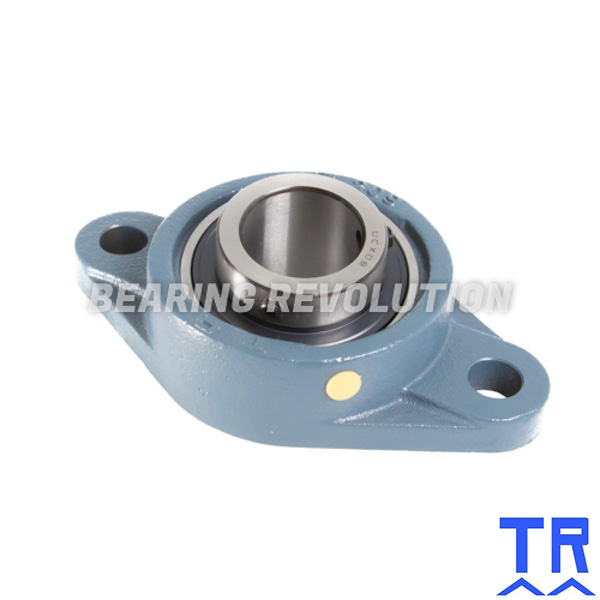

MSFT 1.3/4 ( UCFLX 09 28 ) - OVAL FLANGE UNIT WITH A 1.3/4 INCH BORE - TR BRAND
Heavy Duty Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£98.02 (£117.62 inc VAT)
- 5 - 9£93.12 (£111.74 inc VAT)
- 10 +£88.22 (£105.86 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSFT 1.3/4 ( UCFLX 09 28 ) - Oval Flange Unit with a 1.3/4 inch bore - TR Brand | |
| Reference | MSFT 1.3/4 |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Bolt | M14 |
| Weight (KG) | 2.17 |

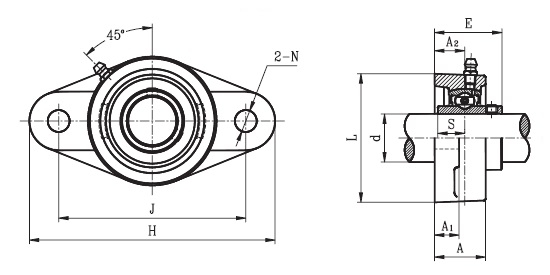

Schematic for MSFT 1.3/4 ( UCFLX 09 28 ) - Oval Flange Unit with a 1.3/4 inch bore - TR Brand | |
| A | 40mm |
| A1 | 14mm |
| A2 | 23mm |
| E | 55.6mm |
| H | 189mm |
| J | 157mm |
| KG | 2.17 |
| L | 116mm |
| N | 16mm |
| S | 19mm |
