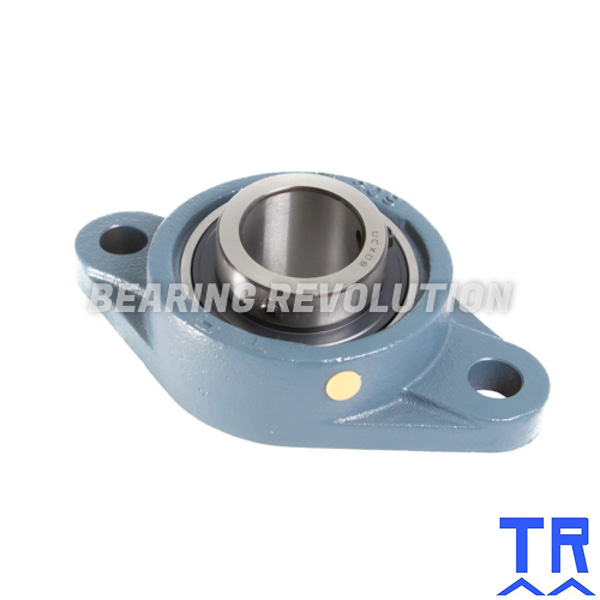

MSFT 25 ( UCFLX 05 ) - OVAL FLANGE UNIT WITH A 25MM BORE - TR BRAND
Heavy Duty Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£55.48 (£66.58 inc VAT)
- 5 - 9£52.71 (£63.25 inc VAT)
- 10 +£49.93 (£59.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSFT 25 ( UCFLX 05 ) - Oval Flange Unit with a 25mm bore - TR Brand | |
| Reference | MSFT 25 |
| Brand | TR |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Weight (KG) | 0.97 |

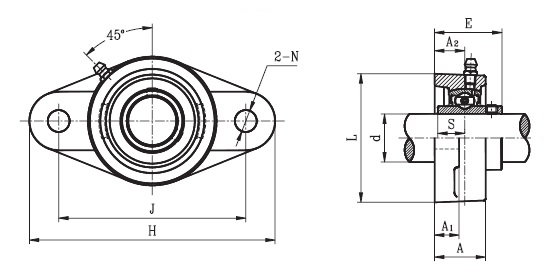

Schematic for MSFT 25 ( UCFLX 05 ) - Oval Flange Unit with a 25mm bore - TR Brand | |
| A | 30mm |
| A1 | 13mm |
| A2 | 18mm |
| E | 40.2mm |
| H | 141mm |
| J | 117mm |
| KG | 0.97 |
| L | 83mm |
| N | 12mm |
| S | 15.9mm |
