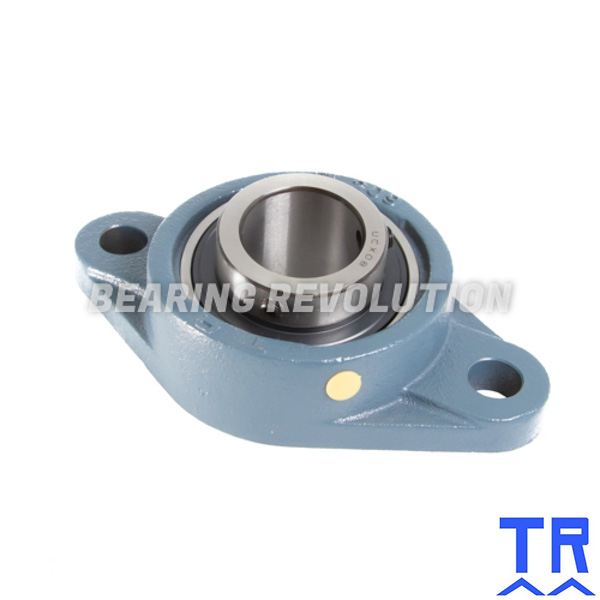

MSFT 35 ( UCFLX 07 ) - OVAL FLANGE UNIT WITH A 35MM BORE - TR BRAND
Heavy Duty Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£70.37 (£84.44 inc VAT)
- 5 - 9£66.85 (£80.22 inc VAT)
- 10 +£63.33 (£76.00 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSFT 35 ( UCFLX 07 ) - Oval Flange Unit with a 35mm bore - TR Brand | |
| Reference | MSFT 35 |
| Brand | TR |
| Inside Diameter | 35mm |
| Bolt | M14 |
| Weight (KG) | 1.76 |

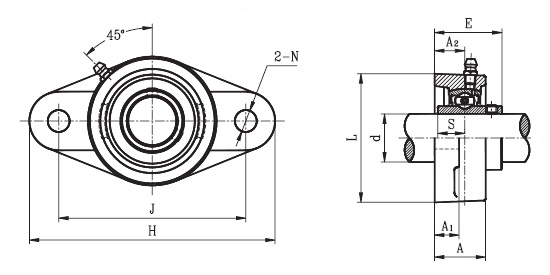

Schematic for MSFT 35 ( UCFLX 07 ) - Oval Flange Unit with a 35mm bore - TR Brand | |
| A | 38mm |
| A1 | 14mm |
| A2 | 21mm |
| E | 51.2mm |
| H | 171mm |
| J | 144mm |
| KG | 1.76 |
| L | 105mm |
| N | 16mm |
| S | 19mm |
