MST 3.1/2, 'PREMIUM' TAKE UP UNIT WITH A 3.1/2 INCH BORE.

Name: MST 3.1/2, 'Premium' Take Up Unit with a 3.1/2 inch bore.
Brand: Premium
Price: 1734.71 GBP
Availability: InStock

BR Stock No. P-MST 3.1/2 | Brand: Premium | Mfr. Part No. MST 3.1/2

Heavy Duty Cast Iron Take Up Unit complete with full width bearing insert from our Premium Range.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£1,445.59 (£1,734.71 inc VAT)
5 +£1,373.31 (£1,647.97 inc VAT)
Bulk Order PricesENQUIRE

MST 3.1/2, 'Premium' Take Up Unit with a 3.1/2 inch bore. Schematic

Specifications for MST 3.1/2, 'Premium' Take Up Unit with a 3.1/2 inch bore.
Reference	MST 3.1/2
Brand	Premium
Inside Diameter	3.1/2"
Weight (KG)	16.8

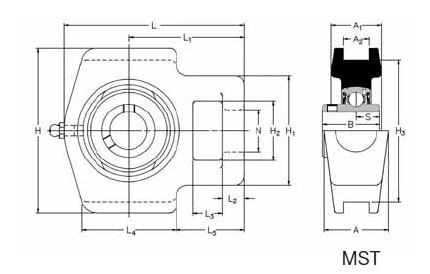

Schematic for MST 3.1/2, 'Premium' Take Up Unit with a 3.1/2 inch bore.
A	79.5mm
A1	68.5mm
A2	46.05mm
B	96mm
H	216mm
H1	127mm
H2	73mm
H3	190.5mm
KG	16.8
L	270mm
L1	165mm
L2	28.5mm
L3	38mm
L4	152.5mm
L5	90mm
N	47.5mm
s	39.74mm
