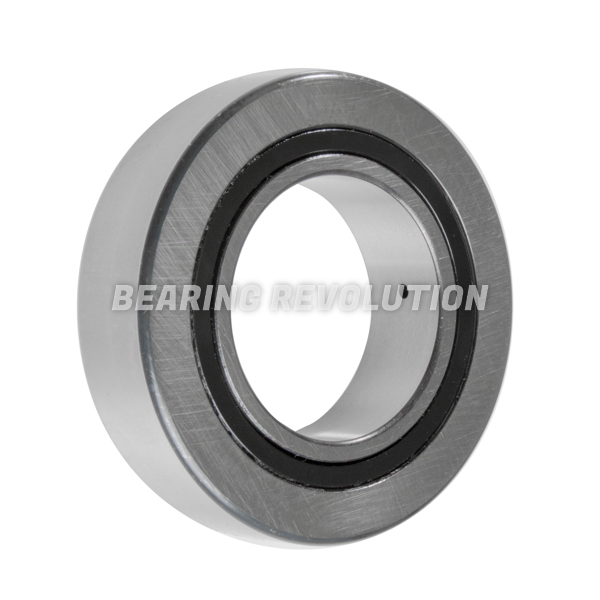

NA 2203 2RS X, YOKE TYPE SUPPORT ROLLER WITH A 17MM BORE - PREMIUM RANGE
Yoke type support roller complete with inner ring, without axial guidance for the outer ring, cylindrical outer, lip seals on both side, from our Premium range. 17mm ID, 40mm OD, 16mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£60.46 (£72.55 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NA 2203 2RS X, Yoke Type Support Roller with a 17mm bore - Premium Range | |
| Reference | NA 2203 2RS X |
| Brand | Premium |
| Inside Diameter | 17mm |
| Outside Diameter | 40mm |
| Width | 16mm |
| Weight (KG) | 0.094 |

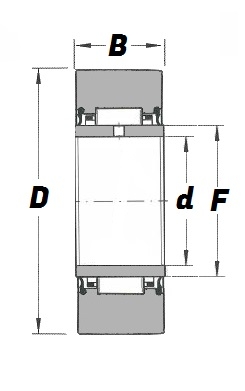

Schematic for NA 2203 2RS X, Yoke Type Support Roller with a 17mm bore - Premium Range | |
| B | 16mm |
| d | 17mm |
| D | 40mm |
| F | 22mm |
