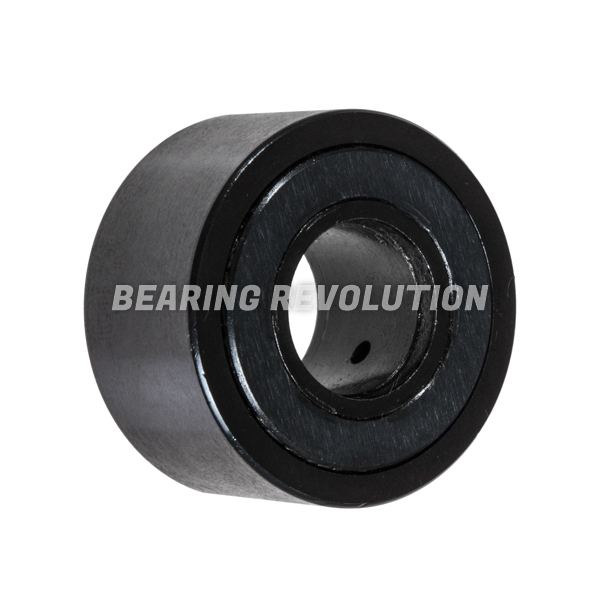

NATV 10, YOKE TYPE SUPPORT ROLLER WITH A 10MM BORE - PREMIUM RANGE
Full compliment yoke type support roller with axial guidance for the outer ring by washers, crowned outer, gap seals on both side, from our Premium range. 10mm ID, 30mm OD, 15mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£41.09 (£49.31 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NATV 10, Yoke Type Support Roller with a 10mm bore - Premium Range | |
| Reference | NATV 10 |
| Brand | Premium |
| Inside Diameter | 10mm |
| Outside Diameter | 30mm |
| Width | 15mm |
| Weight (KG) | 0.067 |

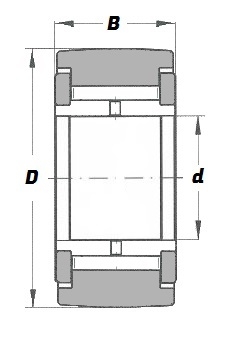

Schematic for NATV 10, Yoke Type Support Roller with a 10mm bore - Premium Range | |
| B | 15mm |
| d | 10mm |
| D | 30mm |
