NF 209 C3, NF-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - BRASS CAGE - BUDGET RANGE

Name: NF 209 C3, NF-Series Cylindrical Roller Bearing with a 45mm bore - Brass Cage - Budget Range
Brand: Budget
Price: 117.23 GBP
Availability: InStock

BR Stock No. B-NF 209 C3 | Brand: Budget | Mfr. Part No. NF 209 C3

Single Row Cylindrical Roller Bearing from our Budget range. Two ribs on the inner ring and one rib on the outer ring. 45mm ID, 85mm OD, 19mm width. Also known as

Our budget range is manufactured to International standards and represents great value for money.

UnitsPer unit
1 - 4£97.69 (£117.23 inc VAT)
5 - 9£92.80 (£111.36 inc VAT)
10 +£87.90 (£105.48 inc VAT)
Bulk Order PricesENQUIRE

NF 209 C3, NF-Series Cylindrical Roller Bearing with a 45mm bore - Brass Cage - Budget Range Schematic

Specifications for NF 209 C3, NF-Series Cylindrical Roller Bearing with a 45mm bore - Brass Cage - Budget Range
Reference	NF 209 C3
Brand	Budget
Inside Diameter	45mm
Outside Diameter	85mm
Width	19mm
Clearance	C3
Weight (KG)	0.445

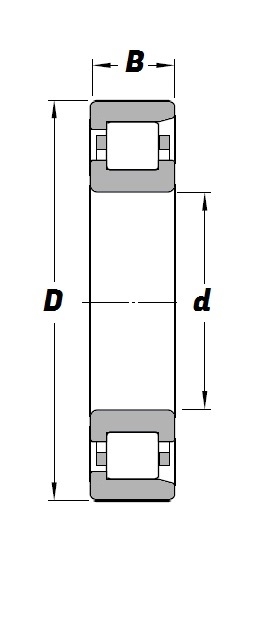

Schematic for NF 209 C3, NF-Series Cylindrical Roller Bearing with a 45mm bore - Brass Cage - Budget Range
B	19mm
d	45mm
D	85mm
