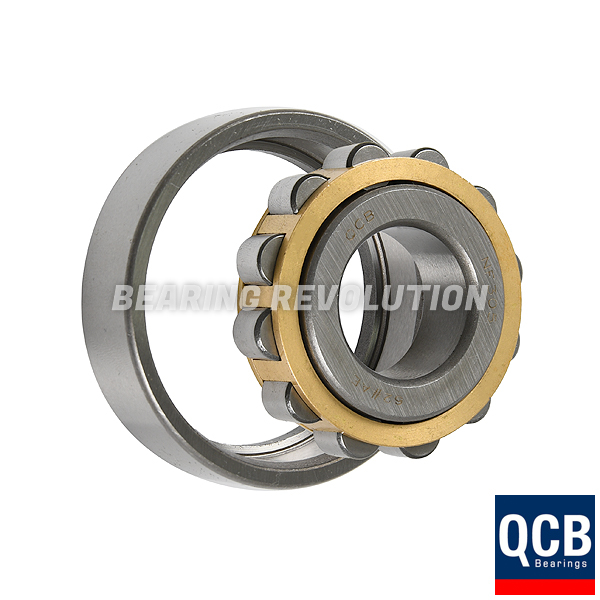

NF 2224 E C4
NF-SERIES CYLINDRICAL ROLLER BEARING WITH A 120MM BORE - BRASS CAGE - SELECT RANGE
Single Row Cylindrical Roller Bearing from our Select range. Two ribs on the inner ring and one rib on the outer ring, 120mm bore, 215mm OD, 58mm width.
Also known as NF2224EC4
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for NF 2224 E C4 | |
| Reference | NF 2224 E C4 |
| Brand | Select |
| Inside Diameter | 120mm |
| Outside Diameter | 215mm |
| Width | 58mm |
| Clearance | C4 |
| Weight (KG) | 8.55 |

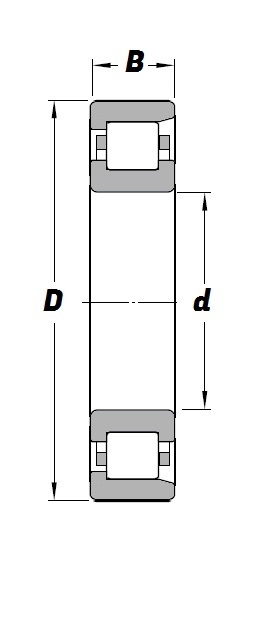

Schematic for NF 2224 E C4 | |
| B | 58mm |
| d | 120mm |
| D | 215mm |
