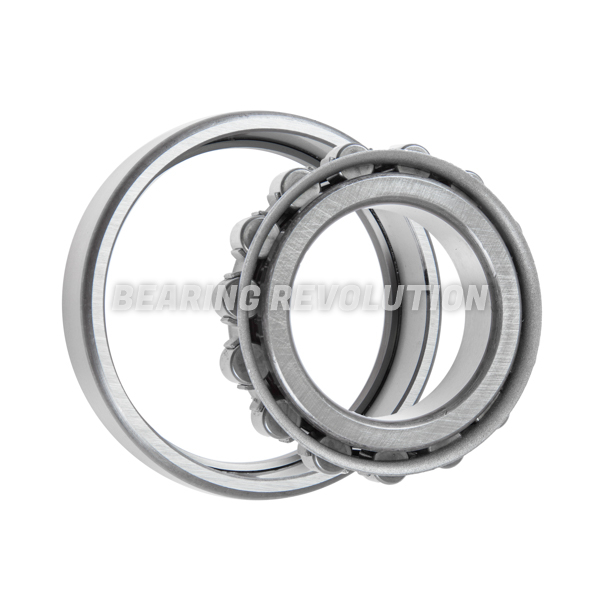

Please note photos are for illustration purposes only

NF 308 C3, NF-SERIES CYLINDRICAL ROLLER BEARING WITH A 40MM BORE - STEEL CAGE - BUDGET RANGE

Name: NF 308 C3, NF-Series Cylindrical Roller Bearing with a 40mm bore - Steel Cage - Budget Range
Brand: Budget
Price: 84.86 GBP
Availability: InStock

BR Stock No. B-NF 308 C3 | Brand: Budget | Mfr. Part No. NF 308 C3

Single Row Cylindrical Roller Bearing from our Budget range. Two ribs on the inner ring and one rib on the outer ring. 40mm ID, 90mm OD, 23mm width. Also known as

Our budget range is manufactured to International standards and represents great value for money.

UnitsPer unit
1 - 4£70.72 (£84.86 inc VAT)
5 - 9£67.18 (£80.62 inc VAT)
10 +£63.65 (£76.38 inc VAT)
Bulk Order PricesENQUIRE

NF 308 C3, NF-Series Cylindrical Roller Bearing with a 40mm bore - Steel Cage - Budget Range Schematic

Specifications for NF 308 C3, NF-Series Cylindrical Roller Bearing with a 40mm bore - Steel Cage - Budget Range
Reference	NF 308 C3
Brand	Budget
Inside Diameter	40mm
Outside Diameter	90mm
Width	23mm
Clearance	C3
Weight (KG)	0.685

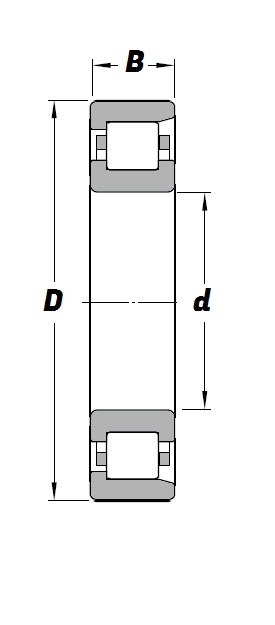

Schematic for NF 308 C3, NF-Series Cylindrical Roller Bearing with a 40mm bore - Steel Cage - Budget Range
B	23mm
d	40mm
D	90mm
