NJ 2309 VH NR C4

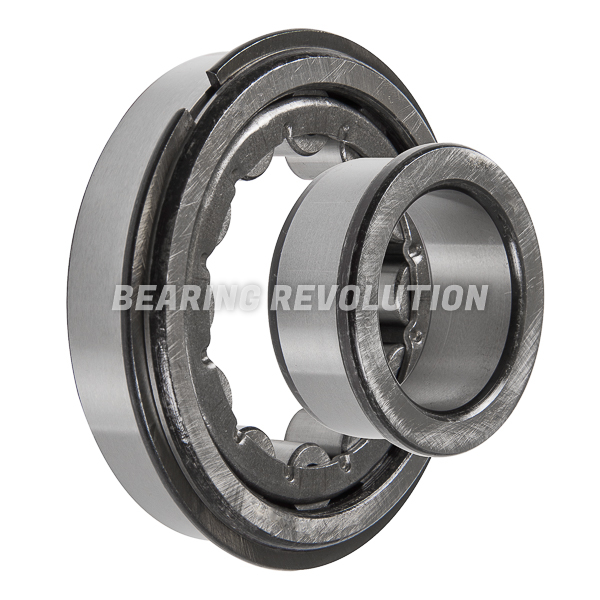

NJ-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - BUDGET RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring from our Budget range. One rib on the inner ring and two ribs on the outer ring. 45mm bore, 100mm OD, 36mm width.
Also known as NJ2309VHNRC4
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for NJ 2309 VH NR C4 | |
| Reference | NJ 2309 VH NR C4 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 36mm |
| Clearance | C4 |
| Snap Ring | Snap Ring |
| Weight (KG) | 1.25 |

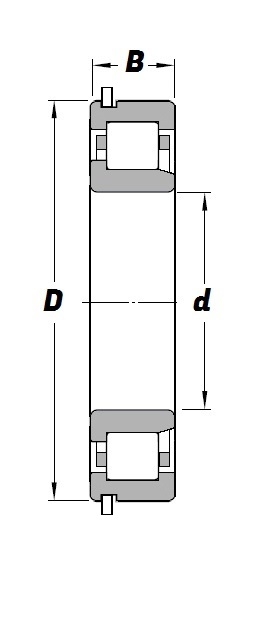

Schematic for NJ 2309 VH NR C4 | |
| B | 36mm |
| d | 45mm |
| D | 100mm |
