NP 1.1/4 A ( SBP 207 20 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.1/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£44.49 (£53.39 inc VAT)
- 5 - 9£42.26 (£50.71 inc VAT)
- 10 +£40.04 (£48.05 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 1.1/4 A ( SBP 207 20 ) - Pillow Block Housing Unit with a 1.1/4 inch bore - TR Brand | |
| Reference | NP 1.1/4 A |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Bolt | M12 |
| Weight (KG) | 1.16 |

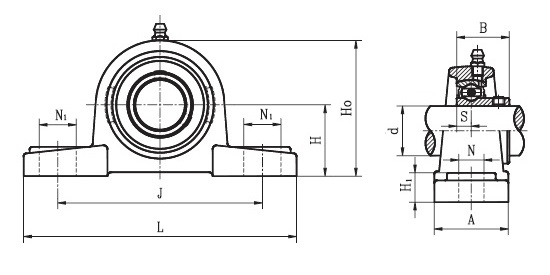

Schematic for NP 1.1/4 A ( SBP 207 20 ) - Pillow Block Housing Unit with a 1.1/4 inch bore - TR Brand | |
| A | 44mm |
| B | 30mm |
| H | 42.9mm |
| H0 | 83mm |
| H1 | 16mm |
| J | 121mm |
| KG | 1.16 |
| L | 160mm |
| N | 14mm |
| N1 | 19mm |
| S | 8mm |
