NP 1.1/8 ( UCP 206 18 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.1/8 INCH BORE - TR BRAND

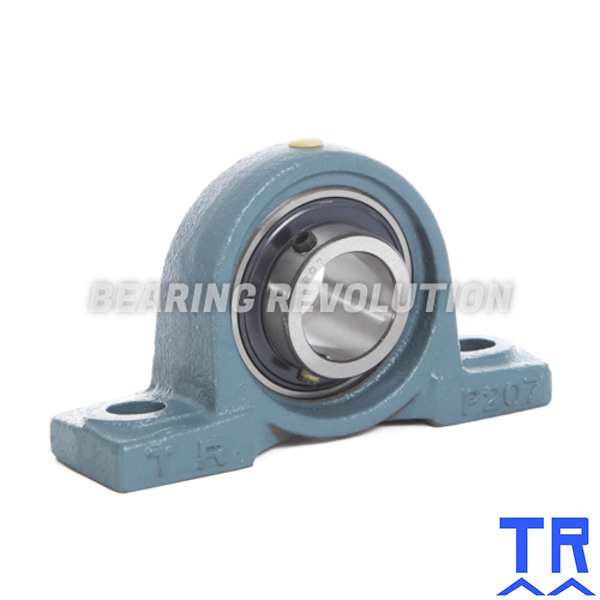

Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£39.67 (£47.60 inc VAT)
- 5 - 9£37.70 (£45.24 inc VAT)
- 10 +£35.70 (£42.84 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 1.1/8 ( UCP 206 18 ) - Pillow Block Housing Unit with a 1.1/8 inch bore - TR Brand | |
| Reference | NP 1.1/8 |
| Brand | TR |
| Inside Diameter | 1.1/8" |
| Bolt | M12 |
| Weight (KG) | 1.22 |
Schematic for NP 1.1/8 ( UCP 206 18 ) - Pillow Block Housing Unit with a 1.1/8 inch bore - TR Brand | |
| A | 44mm |
| B | 38.1mm |
| H | 42.9mm |
| H0 | 83mm |
| H1 | 16mm |
| J | 121mm |
| KG | 1.22 |
| L | 160mm |
| N | 14mm |
| N1 | 19mm |
| S | 15.9mm |
