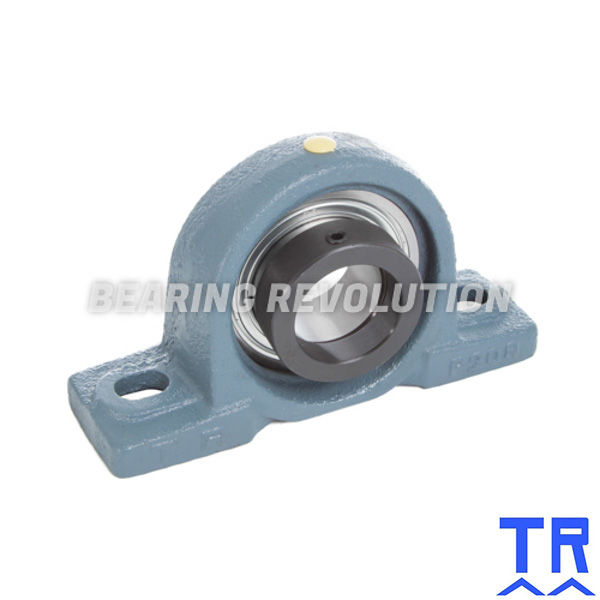

NP 1.3/8 EC ( SAP 207 22 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.3/8 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£48.55 (£58.26 inc VAT)
- 5 - 9£46.11 (£55.33 inc VAT)
- 10 +£43.70 (£52.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 1.3/8 EC ( SAP 207 22 ) - Pillow Block Housing Unit with a 1.3/8 inch bore - TR Brand | |
| Reference | NP 1.3/8 EC |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.58 |
Schematic for NP 1.3/8 EC ( SAP 207 22 ) - Pillow Block Housing Unit with a 1.3/8 inch bore - TR Brand | |
| A | 48mm |
| B1 | 38.9mm |
| H | 47.6mm |
| H0 | 93mm |
| H1 | 17mm |
| J | 126mm |
| KG | 1.58 |
| L | 167mm |
| N | 15mm |
| N1 | 19mm |
| S | 9.5mm |
