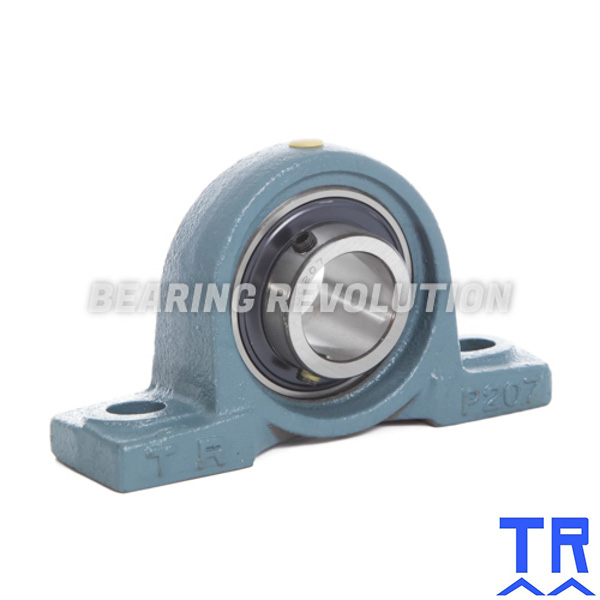

NP 1.7/16 ( UCP 207 23 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.7/16 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£46.18 (£55.42 inc VAT)
- 5 - 9£43.87 (£52.64 inc VAT)
- 10 +£41.56 (£49.87 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 1.7/16 ( UCP 207 23 ) - Pillow Block Housing Unit with a 1.7/16 inch bore - TR Brand | |
| Reference | NP 1.7/16 |
| Brand | TR |
| Inside Diameter | 1.7/16" |
| Bolt | M12 |
| Weight (KG) | 1.61 |

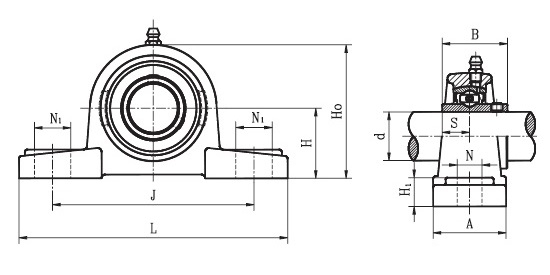

Schematic for NP 1.7/16 ( UCP 207 23 ) - Pillow Block Housing Unit with a 1.7/16 inch bore - TR Brand | |
| A | 48mm |
| B | 42.9mm |
| H | 47.6mm |
| H0 | 93mm |
| H1 | 17mm |
| J | 126mm |
| KG | 1.61 |
| L | 167mm |
| N | 15mm |
| N1 | 19mm |
| S | 17.5mm |
