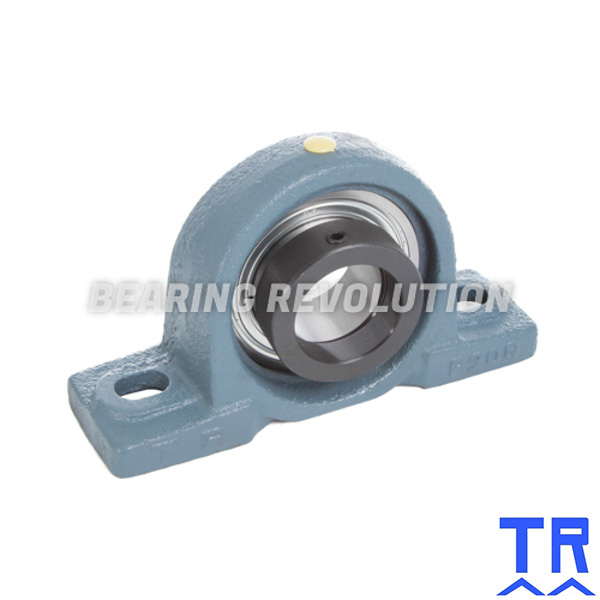

NP 20 EC ( SAP 204 ) - PILLOW BLOCK HOUSING UNIT WITH A 20MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£27.04 (£32.45 inc VAT)
- 5 - 9£25.69 (£30.83 inc VAT)
- 10 +£24.34 (£29.21 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 20 EC ( SAP 204 ) - Pillow Block Housing Unit with a 20mm bore - TR Brand | |
| Reference | NP 20 EC |
| Brand | TR |
| Inside Diameter | 20mm |
| Bolt | M10 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.69 |
Schematic for NP 20 EC ( SAP 204 ) - Pillow Block Housing Unit with a 20mm bore - TR Brand | |
| A | 37mm |
| B1 | 30.9mm |
| H | 33.3mm |
| H0 | 65mm |
| H1 | 14mm |
| J | 96mm |
| KG | 0.69 |
| L | 127mm |
| N | 13mm |
| N1 | 16mm |
| S | 7.5mm |
