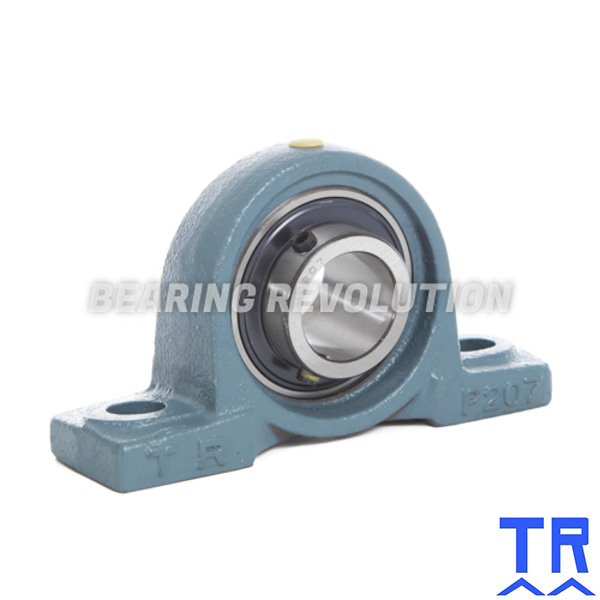

NP 25 ( UCP 205 ) - PILLOW BLOCK HOUSING UNIT WITH A 25MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£30.08 (£36.10 inc VAT)
- 5 - 9£28.58 (£34.30 inc VAT)
- 10 +£27.07 (£32.48 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 25 ( UCP 205 ) - Pillow Block Housing Unit with a 25mm bore - TR Brand | |
| Reference | NP 25 |
| Brand | TR |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Weight (KG) | 0.82 |

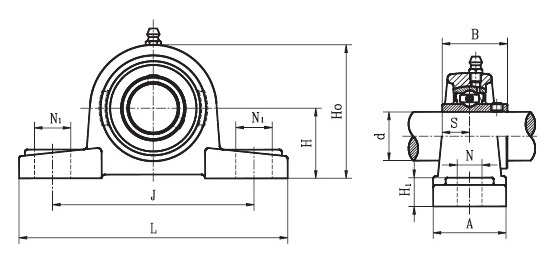

Schematic for NP 25 ( UCP 205 ) - Pillow Block Housing Unit with a 25mm bore - TR Brand | |
| A | 38mm |
| B | 34mm |
| H | 36.5mm |
| H0 | 71mm |
| H1 | 15mm |
| J | 105mm |
| KG | 0.82 |
| L | 140mm |
| N | 13mm |
| N1 | 19mm |
| S | 14.3mm |
