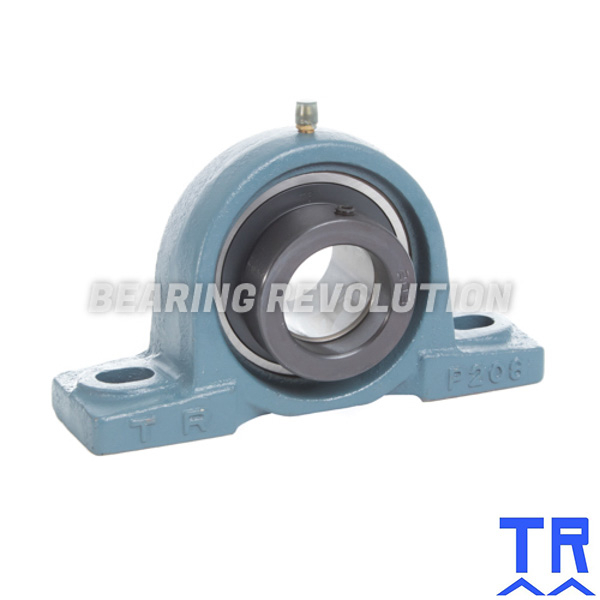

NP 25 DEC ( NAP 205 ) - PILLOW BLOCK HOUSING UNIT WITH A 25MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with full width bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£35.58 (£42.70 inc VAT)
- 5 - 9£33.79 (£40.55 inc VAT)
- 10 +£32.03 (£38.44 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 25 DEC ( NAP 205 ) - Pillow Block Housing Unit with a 25mm bore - TR Brand | |
| Reference | NP 25 DEC |
| Brand | TR |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.87 |

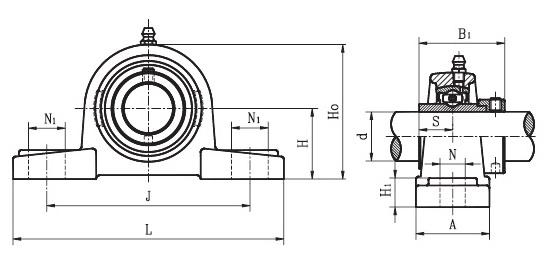

Schematic for NP 25 DEC ( NAP 205 ) - Pillow Block Housing Unit with a 25mm bore - TR Brand | |
| A | 38mm |
| B | 44.3mm |
| H | 36.5mm |
| H0 | 71mm |
| H1 | 15mm |
| J | 105mm |
| KG | 0.87 |
| L | 140mm |
| N | 13mm |
| N1 | 19mm |
| S | 17.4mm |
