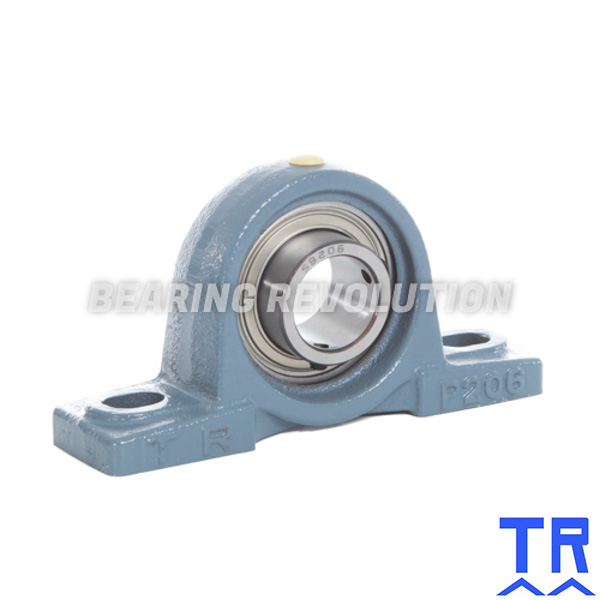

NP 30 A ( SBP 206 ) - PILLOW BLOCK HOUSING UNIT WITH A 30MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£36.37 (£43.64 inc VAT)
- 5 - 9£34.55 (£41.46 inc VAT)
- 10 +£32.73 (£39.28 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 30 A ( SBP 206 ) - Pillow Block Housing Unit with a 30mm bore - TR Brand | |
| Reference | NP 30 A |
| Brand | TR |
| Inside Diameter | 30mm |
| Bolt | M12 |
| Weight (KG) | 1.16 |

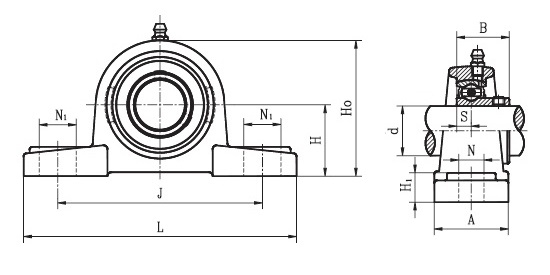

Schematic for NP 30 A ( SBP 206 ) - Pillow Block Housing Unit with a 30mm bore - TR Brand | |
| A | 44mm |
| B | 30mm |
| H | 42.9mm |
| H0 | 83mm |
| H1 | 16mm |
| J | 121mm |
| KG | 1.16 |
| L | 160mm |
| N | 14mm |
| N1 | 19mm |
| S | 8mm |
