NP 35 DEC ( NAP 207 ) - PILLOW BLOCK HOUSING UNIT WITH A 35MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with full width bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£49.96 (£59.95 inc VAT)
- 5 - 9£47.46 (£56.95 inc VAT)
- 10 +£44.98 (£53.98 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 35 DEC ( NAP 207 ) - Pillow Block Housing Unit with a 35mm bore - TR Brand | |
| Reference | NP 35 DEC |
| Brand | TR |
| Inside Diameter | 35mm |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.68 |

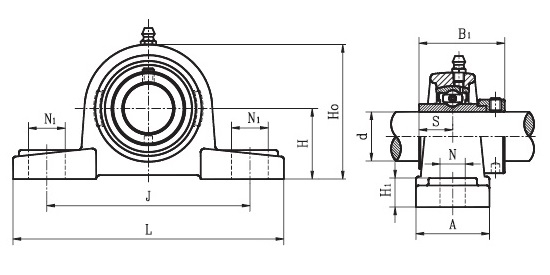

Schematic for NP 35 DEC ( NAP 207 ) - Pillow Block Housing Unit with a 35mm bore - TR Brand | |
| A | 48mm |
| B | 51.1mm |
| H | 47.6mm |
| H0 | 93mm |
| H1 | 17mm |
| J | 126mm |
| KG | 1.68 |
| L | 167mm |
| N | 15mm |
| N1 | 19mm |
| S | 18.8mm |
