NP 40 EC ( SAP 208 ) - PILLOW BLOCK HOUSING UNIT WITH A 40MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£50.79 (£60.95 inc VAT)
- 5 - 9£48.25 (£57.90 inc VAT)
- 10 +£45.71 (£54.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 40 EC ( SAP 208 ) - Pillow Block Housing Unit with a 40mm bore - TR Brand | |
| Reference | NP 40 EC |
| Brand | TR |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.97 |

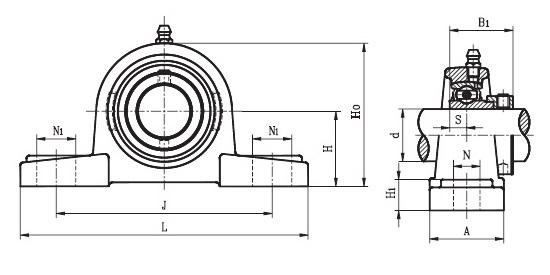

Schematic for NP 40 EC ( SAP 208 ) - Pillow Block Housing Unit with a 40mm bore - TR Brand | |
| A | 52mm |
| B1 | 43.7mm |
| H | 49.2mm |
| H0 | 100mm |
| H1 | 18mm |
| J | 136mm |
| KG | 1.97 |
| L | 180mm |
| N | 15mm |
| N1 | 21mm |
| S | 11mm |
