NP 50 EC ( SAP 210 ) - PILLOW BLOCK HOUSING UNIT WITH A 50MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£67.45 (£80.94 inc VAT)
- 5 - 9£64.07 (£76.88 inc VAT)
- 10 +£60.71 (£72.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 50 EC ( SAP 210 ) - Pillow Block Housing Unit with a 50mm bore - TR Brand | |
| Reference | NP 50 EC |
| Brand | TR |
| Inside Diameter | 50mm |
| Bolt | M16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 2.68 |

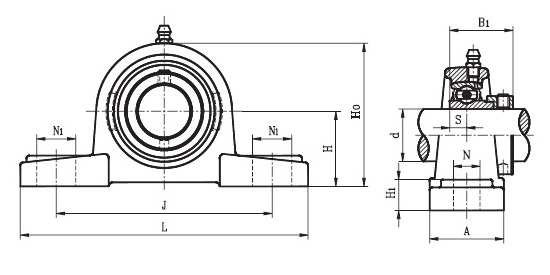

Schematic for NP 50 EC ( SAP 210 ) - Pillow Block Housing Unit with a 50mm bore - TR Brand | |
| A | 57mm |
| B1 | 43.7mm |
| H | 57.2mm |
| H0 | 114mm |
| H1 | 21mm |
| J | 159mm |
| KG | 2.68 |
| L | 204mm |
| N | 19mm |
| N1 | 22mm |
| S | 11mm |
