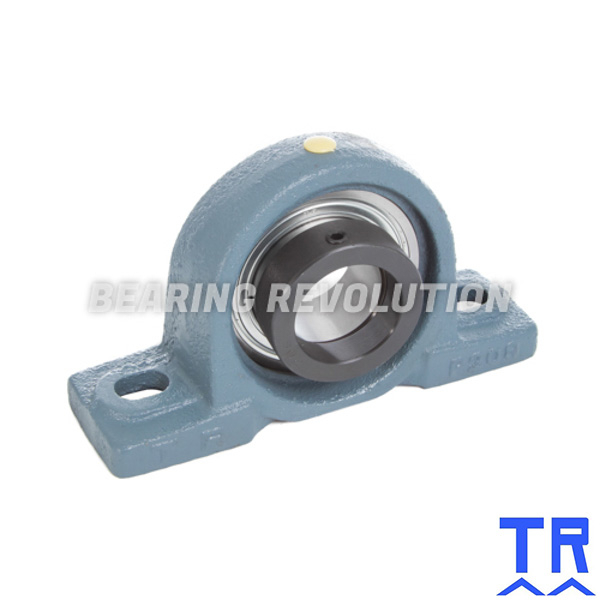

NP 55 EC ( SAP 211 ) - PILLOW BLOCK HOUSING UNIT WITH A 55MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£87.15 (£104.58 inc VAT)
- 5 - 9£82.79 (£99.35 inc VAT)
- 10 +£78.44 (£94.13 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 55 EC ( SAP 211 ) - Pillow Block Housing Unit with a 55mm bore - TR Brand | |
| Reference | NP 55 EC |
| Brand | TR |
| Inside Diameter | 55mm |
| Bolt | M16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 3.42 |

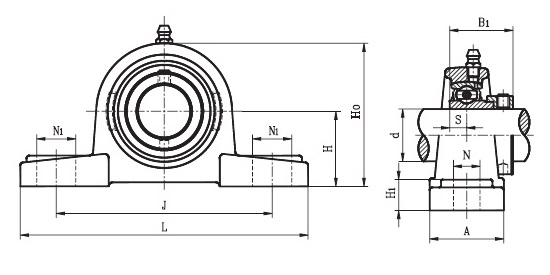

Schematic for NP 55 EC ( SAP 211 ) - Pillow Block Housing Unit with a 55mm bore - TR Brand | |
| A | 60mm |
| B1 | 48.4mm |
| H | 63.5mm |
| H0 | 126mm |
| H1 | 22mm |
| J | 172mm |
| KG | 3.42 |
| L | 217mm |
| N | 19mm |
| N1 | 22mm |
| S | 12mm |
