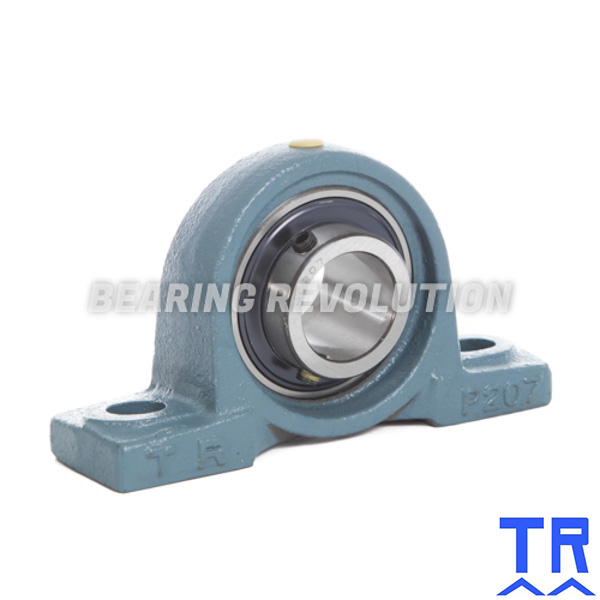

NP .3/4 ( UCP 204 12 ) - PILLOW BLOCK HOUSING UNIT WITH A 3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£27.11 (£32.53 inc VAT)
- 5 - 9£25.76 (£30.91 inc VAT)
- 10 +£24.40 (£29.28 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP .3/4 ( UCP 204 12 ) - Pillow Block Housing Unit with a 3/4 inch bore - TR Brand | |
| Reference | NP .3/4 |
| Brand | TR |
| Inside Diameter | 3/4" |
| Bolt | M10 |
| Weight (KG) | 0.69 |

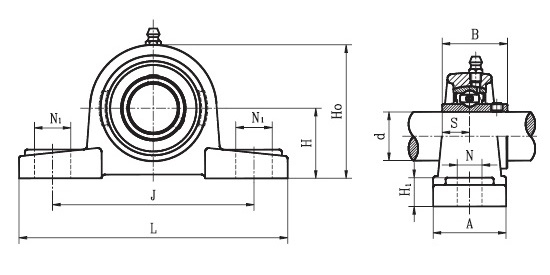

Schematic for NP .3/4 ( UCP 204 12 ) - Pillow Block Housing Unit with a 3/4 inch bore - TR Brand | |
| A | 37mm |
| B | 31mm |
| H | 33.3mm |
| H0 | 65mm |
| H1 | 14mm |
| J | 96mm |
| KG | 0.69 |
| L | 127mm |
| N | 13mm |
| N1 | 16mm |
| S | 12.7mm |
