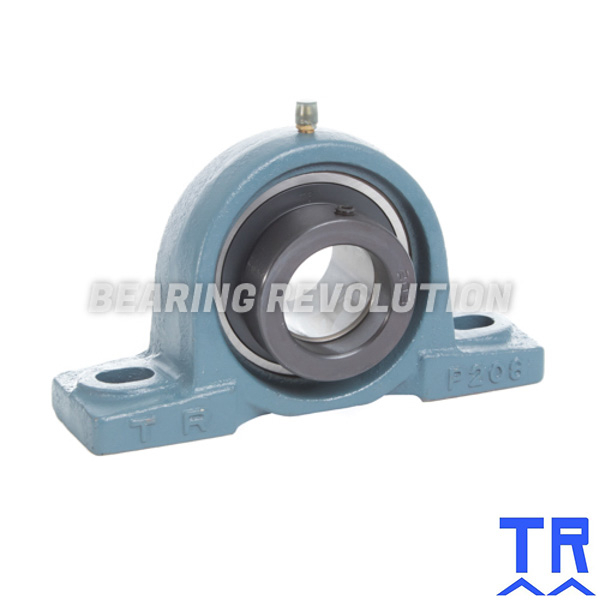

NP .3/4 DEC ( NAP 204 12 ) - PILLOW BLOCK HOUSING UNIT WITH A 3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit fitted with full width bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£34.30 (£41.16 inc VAT)
- 5 - 9£32.59 (£39.11 inc VAT)
- 10 +£30.87 (£37.04 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP .3/4 DEC ( NAP 204 12 ) - Pillow Block Housing Unit with a 3/4 inch bore - TR Brand | |
| Reference | NP .3/4 DEC |
| Brand | TR |
| Inside Diameter | 3/4" |
| Bolt | M10 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.74 |

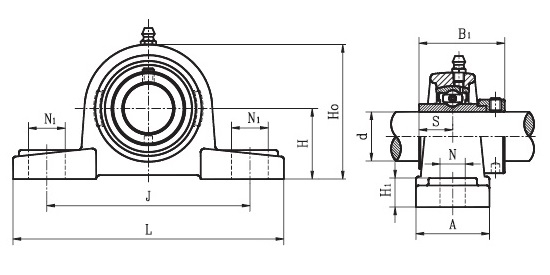

Schematic for NP .3/4 DEC ( NAP 204 12 ) - Pillow Block Housing Unit with a 3/4 inch bore - TR Brand | |
| A | 37mm |
| B | 43.5mm |
| H | 33.3mm |
| H0 | 65mm |
| H1 | 14mm |
| J | 96mm |
| KG | 0.74 |
| L | 127mm |
| N | 13mm |
| N1 | 16mm |
| S | 17mm |
