NU 2224 E C4

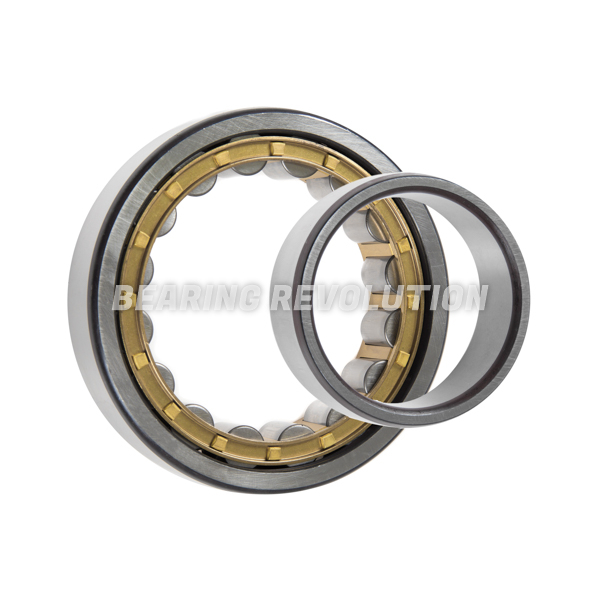

NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 120MM BORE - BRASS CAGE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing from our Premium range. No ribs on the inner ring and two ribs on the outer ring. 120mm bore, 215mm OD, 58mm width.
Also known as NU2224EC4
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NU 2224 E C4 | |
| Reference | NU 2224 E C4 |
| Brand | Premium |
| Inside Diameter | 120mm |
| Outside Diameter | 215mm |
| Width | 58mm |
| Clearance | C4 |
| Weight (KG) | 8.55 |
Schematic for NU 2224 E C4 | |
| B | 58mm |
| d | 120mm |
| D | 215mm |
