NU 2244 E C3 S1

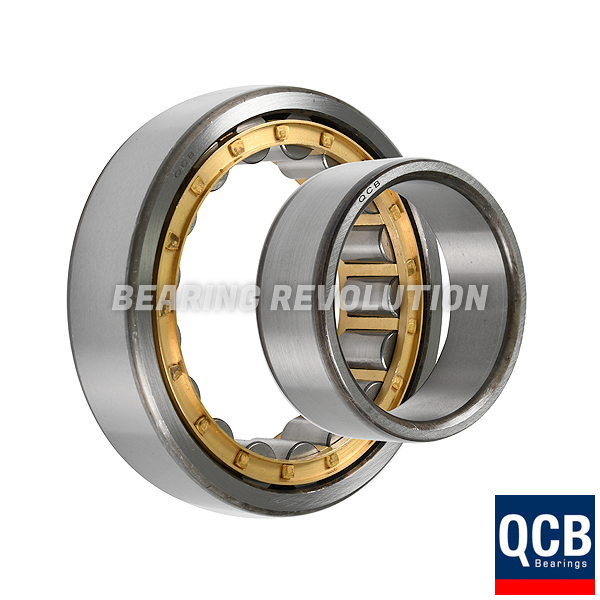

NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 220MM BORE - BRASS CAGE - SELECT RANGE
Single Row Cylindrical Roller Bearing from our Select range. No ribs on the inner ring and two ribs on the outer ring, 220mm bore, 400mm OD, 108mm width.
Also known as NU2244EC3S1
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for NU 2244 E C3 S1 | |
| Reference | NU 2244 E C3 S1 |
| Brand | Select |
| Inside Diameter | 220mm |
| Outside Diameter | 400mm |
| Width | 108mm |
| Clearance | C3 |
| Weight (KG) | 62.5 |
Schematic for NU 2244 E C3 S1 | |
| B | 108mm |
| d | 220mm |
| D | 400mm |
