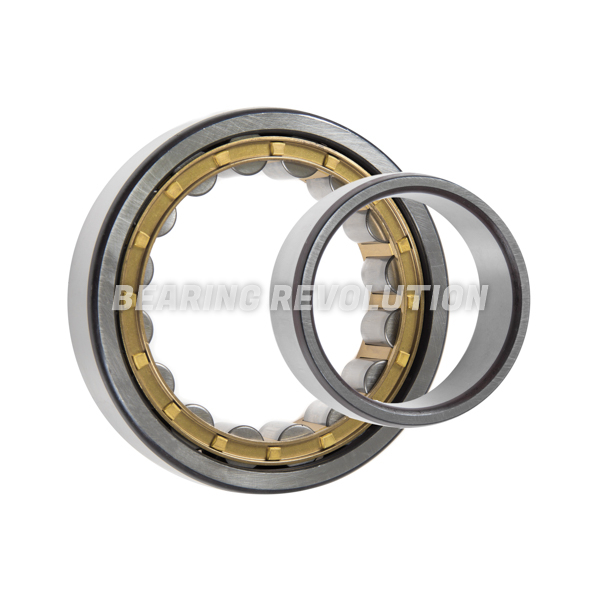

NU 309 C4
NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - BRASS CAGE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing from our Premium range. No ribs on the inner ring and two ribs on the outer ring. 45mm bore, 100mm OD, 25mm width.
Also known as NU309C4
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NU 309 C4 | |
| Reference | NU 309 C4 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Clearance | C4 |
| Weight (KG) | 0.912 |
Schematic for NU 309 C4 | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
