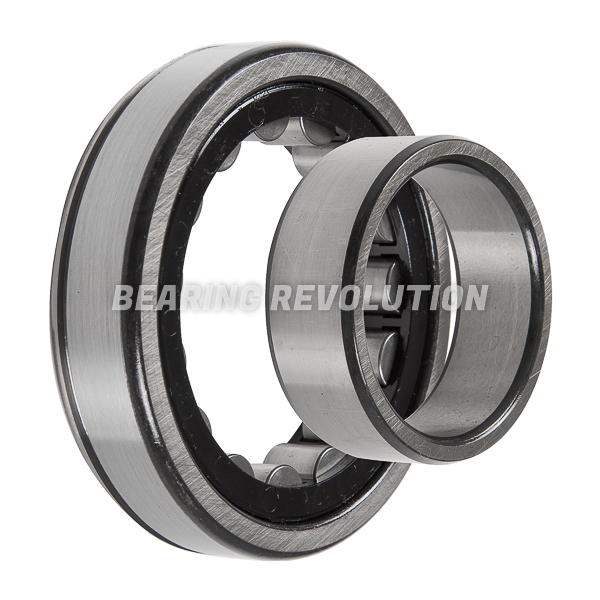

NU 309 EN
NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - PLASTIC CAGE - BUDGET RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring Groove from our Budget range. No ribs on the inner ring and two ribs on the outer ring. 45mm bore, 100mm OD, 25mm width.
Also known as NU309EN
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for NU 309 EN | |
| Reference | NU 309 EN |
| Brand | Budget |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.912 |
Schematic for NU 309 EN | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
